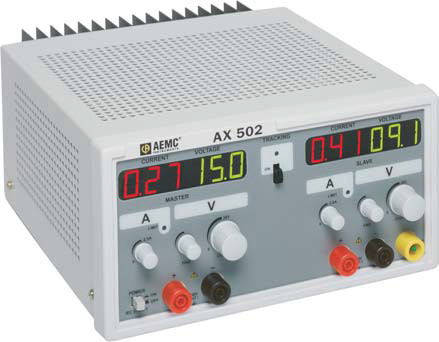

AEMC AX502 DC Power Supply

AEMC AX502 DC Power Supply

The AX502 DC linear power supplies is designed for use in a wide variety of applications. It is equally at home in the precise needs of an electronic design lab, as well as the continuous operation required on a production test line. The state of the art linear technology provides a highly stable, low noise output with less than 1mV of ripple on each output. Active protection circuitry provides an extra level of insurance against damage from short circuits, overloads, and over heating. Highly efficient toroidal transformers allow these supplies to operate without fans, thus eliminating noise and electromagnetic emissions.

The AX502 offers dual 30V outputs, and provides the ability to display both voltage and current for each output

• Clean, stable output <1mVrms of ripple
• Adjustable 30VDC at up to 2.5A
• Adjustable 5VDC at 5A with 3 and 5V positions
• Connect the 30V outputs together to double voltage or current
• Master/Slave tracking with quick and easy setup
• Coarse and Fine voltage adjustments
• Current Limit adjustment with LED indication
• Short circuit protected at full rated current
• Display V and A simultaneously
• Front panel safety input terminals
• Front panel ground terminal
• Designed to EN 61010-1 safety standards

Applications

• Engineering design labs
• Production testing
• Educational labs
• Quality assurance testing
• Approval agency testing
• Repair and calibration labs

Technical Specifications
