AEMC AmpFlex and MiniFlex Current Probes

AEMC AmpFlex and MiniFlex Current Probes

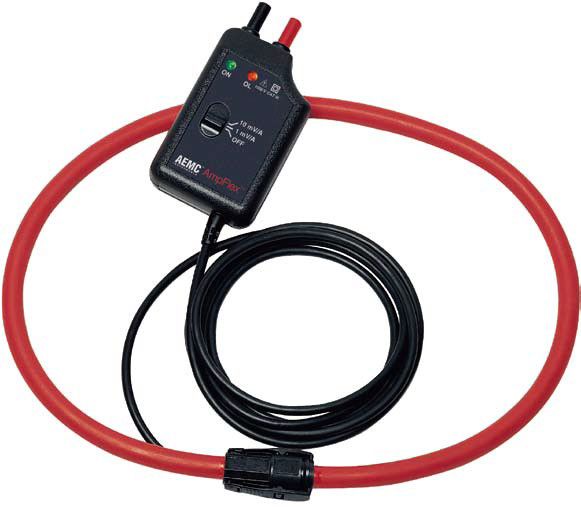

The AmpFlex^® is a flexible AC current probe composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes cannot be used. Measurement range is 5 to 300A. Output signal is 100mV/A and 10mV/A. Sensor length is 24".

Features

Accuracy 1% of Reading
TRMS measurements when connected to a TRMS instrument
No core saturation or damage if overloaded
Waterproof sensor
Shape Memory for custom pre-shaping of sensor before use
Very high frequency response
Low phase shift for power measurements
Insensitive to DC, measures only AC component on DC + AC signals
Excellent linearity
Lightweight

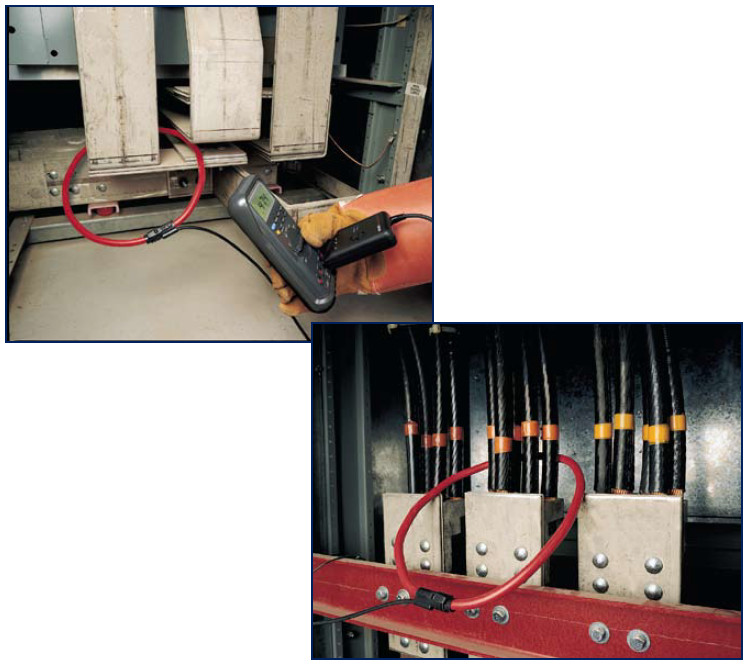

Applications

Measuring wide bus bars
Measuring crowded circuit breaker panels
Measuring around large cable bundles
Measuring in any traditional application
Measuring around irregular shapes
