AEMC Quick Tester 8505 Motor / Transformer Tester
|
Item Number: 2136.51
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2136.51
* Whole number only
|
|
AEMC Quick Tester 8505 Motor / Transformer Tester

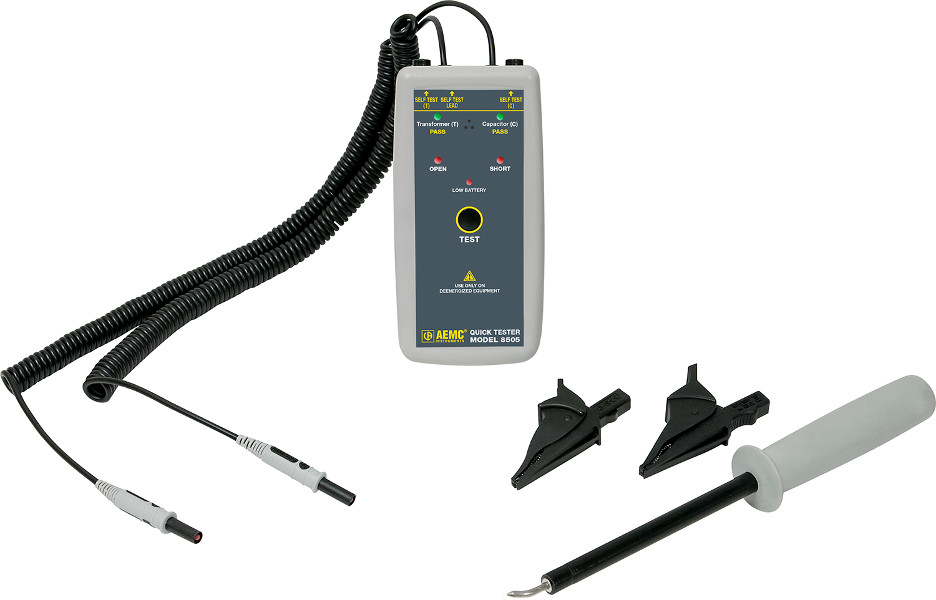

The AEMC 8505 is a Quick Tester hand-held instrument. It is designed to check the basic integrity of power transformers and capacitors. The Model 8505 confirms transformer slowing down without obliging a full transformer ratio test. A user can check a shipment of incoming transformers and any units that have a defective coil can be quickly pinpointed and turned around for repair. The 8505 includes captive cables with safety clips, a test probe, built-in fuse protection, and operates on four AA batteries.
Features
- Checks transformer coil continuity
- Checks capacitor functionality
- Detects open or shorted coils and capacitors
- Automatically identifies device as an inductor or capacitor
- Single button operation
- Bright LED indicators and buzzer for L, C, open and short
- Test probe with 5.75" (146mm) shaft used for insertion into protective shroud to reach test point
- Multi-frequency source signals improves test reliability and accuracy
- Microprocessor-based design for control, stability and repeatability
- Built-in self-test for inductance and capacitance
- Fuse protected
- Battery operated; more than 2500 tests on a full charge
- Low battery indicator begins to blink when approximately 100 tests remain
Applications
- Incoming inspection tool for transformers and capacitors
Industrial-scale power transformers and capacitors may be damaged during shipping or may be faulty due to workmanship issues. The Quick Tester Model 8505 enables an inspector to quickly determine whether or not a shipment of transformers and/or capacitors have open or short conditions that render them unusable. It also can verify switch functionality.
- Quick authentication of installed unit
The Model 8505 can also be used to quickly determine whether or not an installed (de-energized) transformer is operational. However, a full transformer test is required for the final validation of any transformer for field credibility, which can be accomplished using AEMC’s Digital Transformer Ratiometer Model 8510
Technical Specifications
ELECTRICAL
|
| Short |
<20Ω |
| Open |
>20Ω |
| Transformer |
>1mH |
| Capacitor |
0.5uF; <1mF |
| Power Source |
4 x 1.5V AA (LR6) Alkaline batteries |
| Battery Life |
More than 2500 ten second tests on a full charge |
Low Battery
Indicator |
Red LED blinks; approximately 100 tests can be
conducted when LED starts to blink |
| MECHANICAL |
| Dimensions |
7.2" x 3.65" x 1.26" (182.9 x 92.7 x 32mm) w/o leads |
Weight
(with battery) |
14.4 oz. (408 grams) |
| Case |
UL94 |
| Vibration |
IEC 68-2-6 (1.5mm, 10 to 55Hz) |
| Shock |
IEC 68-2-6 (1.5mm 10 to 55Hz) |
| Drop |
IEC 68-2-32 (1m) |
| ENVIRONMENTAL |
Operating
Temperature |
14° to 122°F (-10° to 50°C) |
Storage
Temperature |
-4° to 140°F (-20° to 60°C) |
| Relative Humidity |
0 to 85% @ 95°F (35°C), non-condensing |
| Altitude |
2000m |
| SAFETY |
| Safety Rating |
EN61010-1 |
| Environmental |
IP30 |
| CE Approved |
Pending |
Reference Conditions: 23°C ± 3°C, 30-50% RH, battery voltage: 4.5V ± 10%.
|
