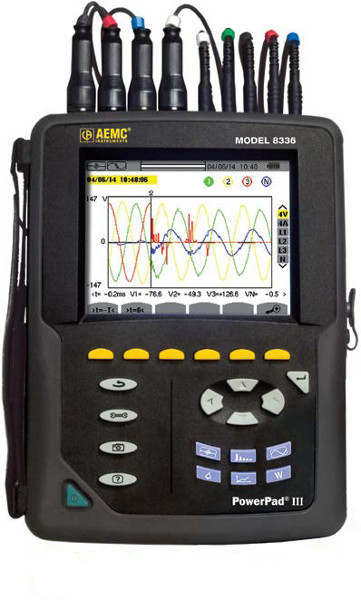

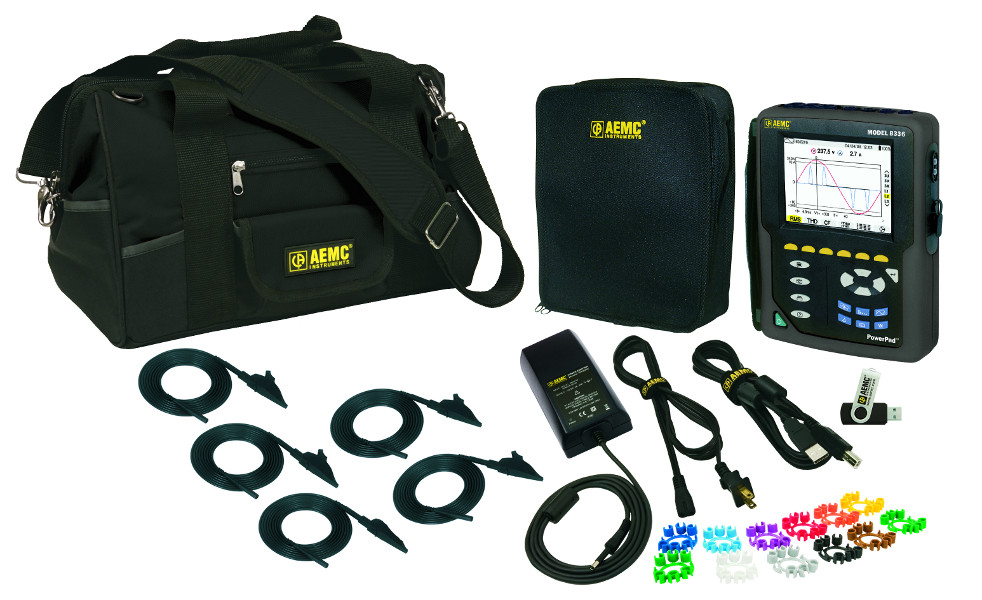

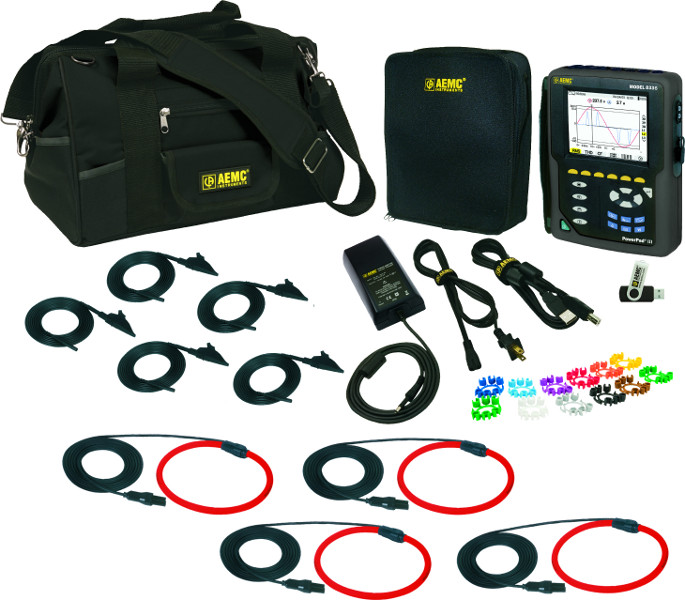

AEMC 8336 Three-Phase Power Quality Analyzer

The AEMC 8336 is simple to use and it allows technicians to measure and carry out diagnostics and power quality work on one-, two- or three-phase networks. The Model 8336 has 2 GB of memory that allows users to store up to 50 screen shots, up to 210 captured transients that contain 4 cycles for each active input, and 10,000 alarm events from up to 40 different parameters.

Features

Measurement of TRMS voltages up to 1000Vrms AD/DC for two-, three-, four- or five-wire systems
Measurement of TRMS currents up to 10kArms (sensor dependent)
Measures up to 5000ADC with the AC/DC Current Probe Model J93
Frequency measurement (40 to 70Hz systems)
Records and displays trend data as fast as once per second for one month up to 41 variables
Captures up to 210 transient occurrences on all V and A inputs
Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
Recording, time stamping and characterization of disturbance (swells, sages and interruptions, exceedence of power and harmonic thresholds)
2GB SD Card for Trend Recording memory; Alarm, Snapshot, Transient and Inrush stored in internal flash memory
Measures energy VAh, VARh & Wh
65µs/sample transient recording
FREE DataView® software is included for configuring real-time display and report generation

Applications

Verification of power distribution circuits
In-plant troubleshooting of power distribution panels and individual machinery
Monitor pad mount transformers and phase unbalances
Determine harmonic problems originating from source or load
Determine transformer K-Factor
Energy metering (kVAh, VARh, kWh)

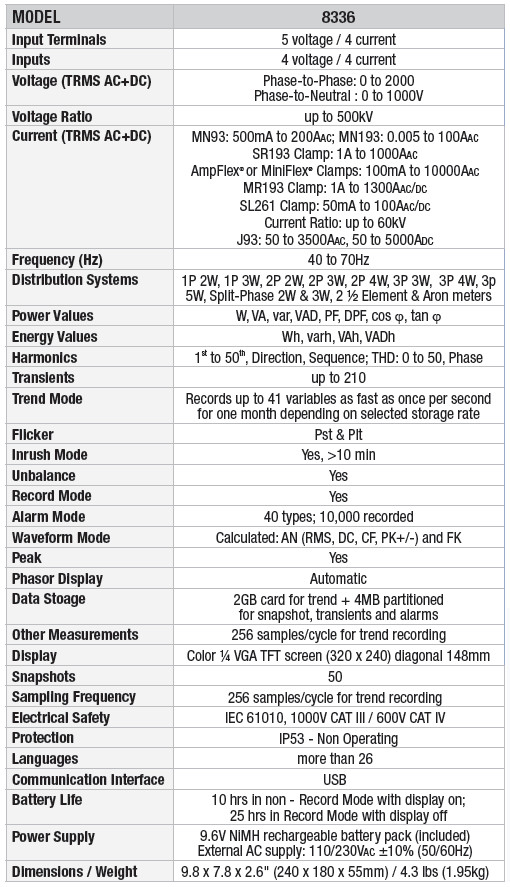

Technical Specifications
