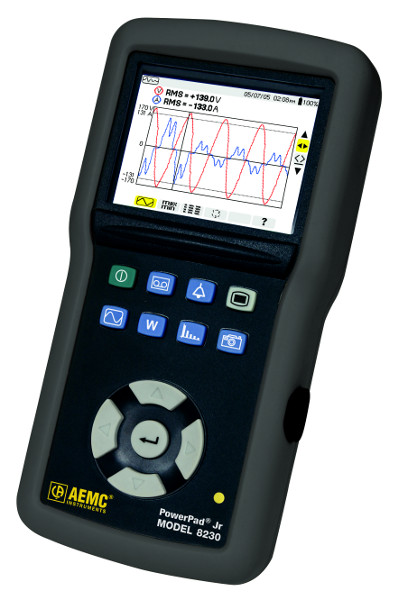

AEMC 8230 PowerPad Jr Power Quality Analyzer
|
Item Number: 2130.81
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2130.81
Product Options
* denotes required field
AEMC 8230 PowerPad Jr Model Selection*
You must select an option for 'AEMC 8230 PowerPad Jr Model Selection'.
NIST Traceable Calibration - Power Meter*
* Whole number only
|
|
AEMC 8230 Single-Phase Power Quality Analyzers
The PowerPad® Jr. Model 8230 is a single-phase power quality analyzer that is
easy-to-use, compact and shock-resistant. It is intended for technicians and engineers
to measure and carry out diagnostic work and power quality work on single- or three-phase
balanced load networks. Users are able to obtain instant waveforms of an electrical network’s
principal characteristics, and also monitor their variation over a period of time. The
multi-tasking measurement system simultaneously handles all the measurement functions and
waveform display of the various magnitudes, detection, continuous recordings and their display
without any constraints.

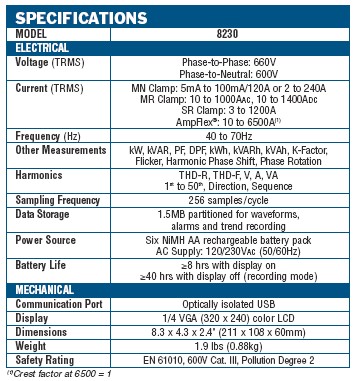

Features
- Measures up to 660Vrms or VDC

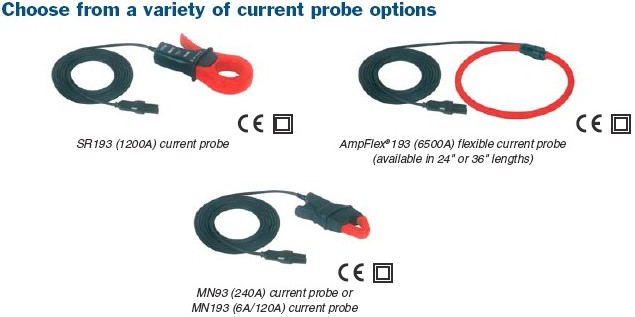

- Measures up to 6500AAC or 1400ADC (probe dependent)
- Displays Min, Max and Average Volts and Amps, Crest Factor, Peak value and K-Factor
- Calculates and displays Watts, VARs and VA, Power Factor and Displacement Power Factor for single-phase and balanced three-phase
- Displays total harmonic distortion (THD-F and THD-R) for voltage and current
- Displays individual harmonic values and % for Volts and Amps through the 50th harmonic
- Captures, displays and stores inrush current waveforms and statistics
- Stores up to eight screen captures
- Stores up to 1MB of trend recorded data
- Configurable from DataView® software or front panel
- Download stored data to DataView® software via optical with isolated USB port
- Captures up to 4096 alarm events using up to 10 different thresholds
- Displays and records up to 17 different power quality parameters
- Includes DataView® software FREE
Applications
- Energy metering (kVAh, VARh, kWh)
- Motor start-up analysis
- Verification of power distribution circuits
- Measurement and recording of power system quality (kW, VA, VAR)
- In-plant troubleshooting of power distribution panels and individual machinery
- Determine harmonic problems originating from source or load
| SOFTWARE FEATURES |
- Display and analyze data on your PC
- Configure all instrument functions and parameters
- Customize frames, templates and reports
- Display real-time data
- Download previously recorded data
- Create and store a complete library of configurations
- Factory predefined templates for each type of instrument

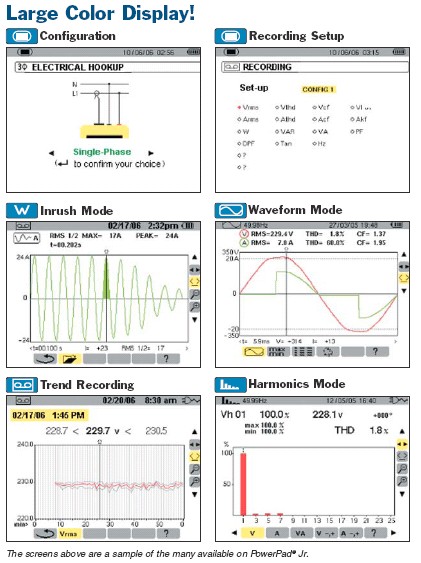

- Display waveforms, trend graphs, harmonic
spectrums and text summaries
- Display surge & sag events in high-resolution
waveforms and as tabular listings
|
|
