AEMC 6610 Phase / Motor Rotation Testers

Our Price: $169.00

Item Number: 2121.12

Manufacturer: AEMC (Chauvin Arnoux)

Part Number: 2121.12

Quantity:

Email this page to a friend

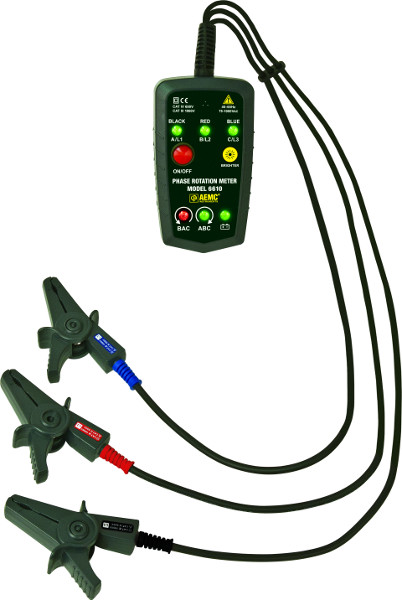

AEMC 6610 Phase / Motor Rotation Testers

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is a phase meter with voltage sensing detector clips (no metal contact points) designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence are provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

Features

Voltage sensing detector clips (no metal contact points)
Operating voltage: 75 to 1000VAC
Frequency range: 45 to 65Hz
Phase rotation LED indicators (ABC or BAC)
Bright LED indication Live or Open Phase (A, B, C)

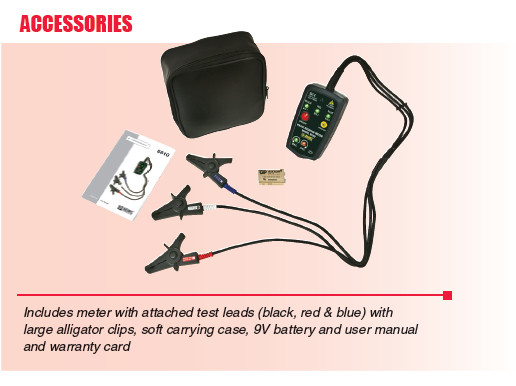

Includes three attached color-coded test leads with non-metallic alligator sensor clips for easy connection to the device under test
Low battery indicator
Back cover includes a magnet feature that can mount the instrument onto any metal cabinet panel for easy measurement
EN61010-1; 1000V CAT III; 600V CAT IV

Applications

Verify incorrect phase wiring
Detect open or de-energized phases
Determine correct wiring for proper rotation on motors, pumps, etc.

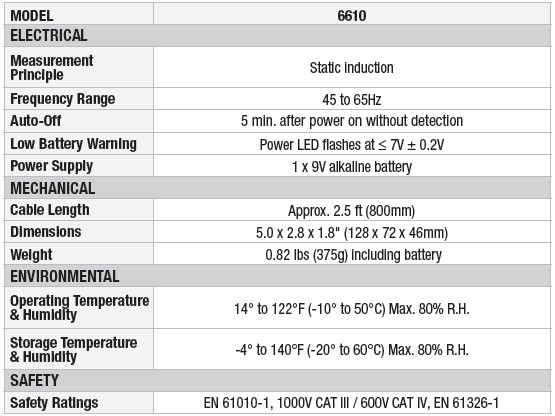

Technical Specifications
