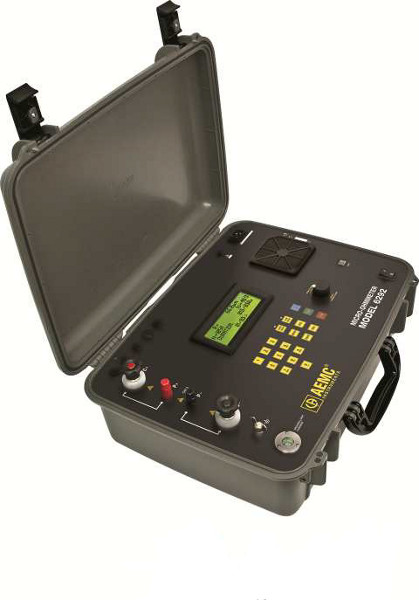

AEMC 6292 Micro-Ohmmeter

Measurement accuracy is assured through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½ digit resolution. It allows measurement of resistances up to 1Ω with resolution as low as 0.1µΩ. Test currents may be adjusted by the operator and are displayed on the digital display.

• Perform tests normally or with both sides of the switch gear connected to the ground
• Four languages available through user selection
• Cooling system to improve the number of sequential tests that can be performed
• Programmable Test Duration to 120 seconds
• Direct viewing of stored tests on the instruments display
• Programmable and manual test current selection
• Accurately measures low contact resistances with test currents up to 200A
• Measures resistances up to 1Ω
• Low resolution of 0.1µΩ
• Large LCD digital display
• Stores up to 8000 test results
• USB communication interface
• Direct printout using DataView® software and a PC
• Rugged, light-weight and water-resistant case

• Test switchgear contact resistance
• Test circuit breaker contact resistance
• Test air frame bonding
• Test rail bonding
• Test pipeline bonding

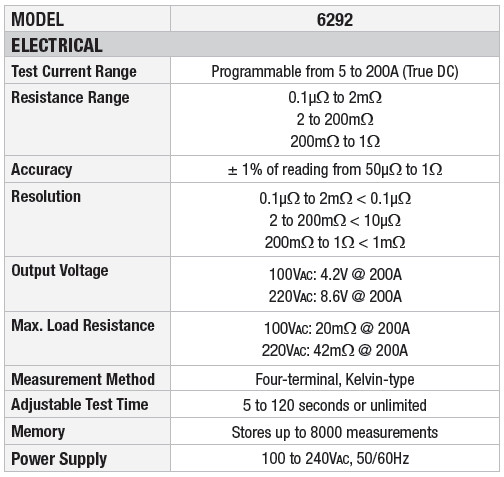

Technical Specifications

AEMC 6292 Data Sheet
