AEMC 503 Clamp On Meter
|
Item Number: 503
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2117.22
Product Options
* denotes required field
NIST Traceable Calibration - Clamp On DMM*
* Whole number only
|
|

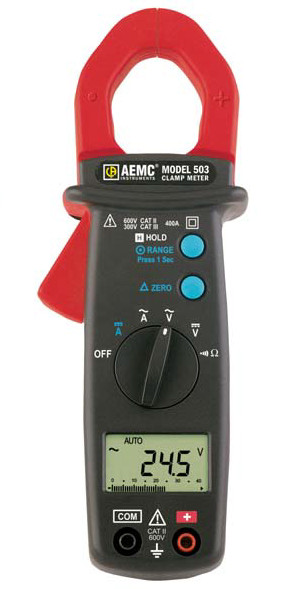

AEMC 503 Clamp On Meter
|
The Clamp-On Meter Model 503 is a general-purpose professional clamp-on. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 503 is auto-ranging, and provides the user with AC Volts, DC Volts, AC Amperes, DC Amperes, resistance, and continuity.
The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 503 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening for the Model 503 is 1.1" (28mm).
Features:
- Compact size - fits into your pocket
- 400AAC current measurements
- 600VAC/DC volts measurements
- Resistance measurements to 400 Ohm
- Continuity with beeper below 40 Ohm
- Hold function to "freeze" readings
- Push-button for easy ADC zeroing
- Large easy-to-read 4000-count display
- 42-segment bargraph
- Includes test leads and a soft carrying pouch
Applications:
- Industrial, commercial, HVAC and residential troubleshooting
- Power panel, junction box and battery bank monitoring
- Electrical testing and troubleshooting on traditional and
non-linear leads, such as adjustable speed drives and computers
Technical Specifications:
|
Models
|
503
|
|
AC Ampheres (Auto Ranging)
|
0.05 to 400 A
|
|
Resolution
|
0.01 & 0.1 A
|
|
Accuracy: 50 to 60 Hz
60 to 500Hz
|
1.5% Reading +/- 5 counts
2.5% Reading +/- 5 counts
|
|
AC Volts(Auto Ranging)
|
0.5 to 600 V
|
|
Resolution
|
0.1 V & 1 V
|
|
Accuracy: 50 to 60Hz
60 to 500Hz
|
0.8% Reading +/- 5 counts
1.5% Reading +/- 5 counts
|
|
Input Impedance
|
10 MW
|
|
DC Amperes (Auto Ranging
|
0.10 to 400 A
|
|
Resolution
|
0.01 A to 0.1 A
|
|
Accuracy
|
2.5% Reading +/- 10 counts
|
|
DC Volts(Auto Ranging)
|
0.2 to 600 V
|
|
Resolution
|
0.1 V & 1 V
|
|
Accuracy
|
1% Reading +/- 2 counts
|
|
Input Impedance
|
10 MW
|
|
Resistance-Ohms(W)
|
0.2 to 400 W
|
|
Accuracy
|
1% Reading +/- 2 counts
|
|
Max. Test Voltage
|
1.5 VDC
|
|
Continuity (Beeper)
|
<40 W
|
|
Max Test Voltage
|
1.5 VDC
|
|
|
