AEMC 1060 1000V Digital/Analog Megohmmeter with PC Interface
|
Item Number: 2130.03
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2130.03
Product Options
* denotes required field
NIST Calibration - Insulation Tester*
* Whole number only
|
|

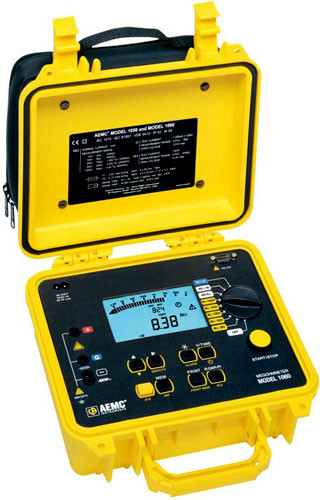

AEMC 1060 1000V Digital/Analog Megohmmeter
The Digital/Analog Megohmmeter Model 1060 is a fully automated 1000V insulation tester. It provides insulation measurements to 4000GOhm (4TOhm). Test results include DAR, PI, capacitance, voltage measurement and duration of test.
The Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs. The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC. Features
- True Megohmmeter®
- Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
- Insulation measurement to 4000GOhm (4TOhm )
- Direct measurement of DAR and PI values
- Direct measurement of sample Capacitance
- Display of test voltage and run time
- Programmable test run times and PI times
- Smooth and Alarm functions
- Automatic test inhibition if live sample >25V
- Automatic discharge after use with voltage display
- Large dual display with time, voltage and measurement
- Bright blue electroluminescent backlight
- Remote operation with optional test probe
- Rugged, dual wall, weatherproof field case with detachable lead/accessory pouch
- AC rechargeable NiMH batteries
- RS-232 interface for direct printing of results

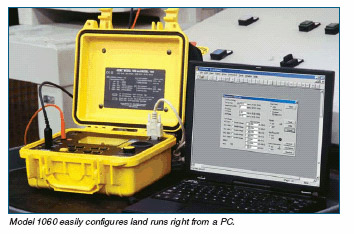

- Remote operation through PC
- Includes software to configure instrument and generate reports<?li>
 Applications
- Test insulation on cables, transformers, motors and wiring installations
- High resistance or absorption tests
- Spot reading tests
- Timed resistance measurements
- Dielectric (DAR) and polarization (PI) tests
- Low insulation test range for testing old or flooded installations
- Motor insulation resistance measurements
- Continuity checks and low resistance measurements
- Computer controlled production line testing
- Predictive maintenance by storing results in PC for trend analysis

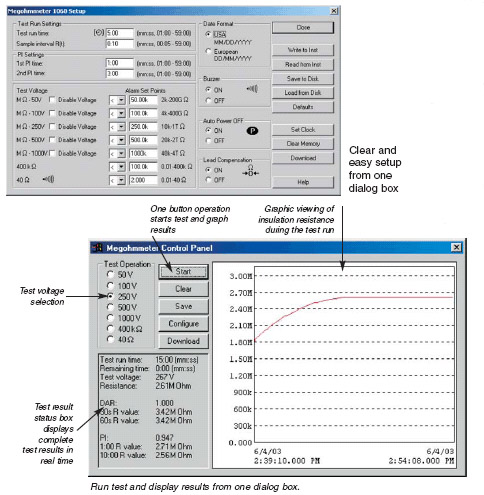

DataView® Software for Model 1060
Features
Configure all functions of the Megohmmeter Model 5070 Print reports of all test results
- Select test voltage and run tests from your computer with a simple click and execute process
- Capture and display data in real time
- Retrieve data from the instrument’s memory: Over 1500 insulation resistance measurements
- Display DAR, PI and DD ratios
- Plot graphs of manual and timed tests
- Include your analysis in the comments section with the report
- Store a library of setups for different applications
- Certification of results through report generation
Minimum System Requirements
- Windows® 98/2000/ME/XP or Windows® NT 4.0
- 128MB of RAM (256MB recommended) for Windows® 98/2000/ME or Windows® NT 4.0
256MB of RAM for Windows® XP
- 35MB of hard disk space (200MB recommended)
- CD Rom Drive
 |
AEMC Remote Test Probe for use with Model 1040, 1045, 1035 and 1039 Megohmmeters ONLY
|
The Megohmmeter Model 1050 is a 1000V Digital/Analog Insulation Tester. It is designed to facilitate testing by incorporating automatic measurement features and user friendly functions.
|
