Additel 918 Pneumatic Pressure Test Pump (1500 psi)

Additel 918 Pneumatic Pressure Test Pump (1500 psi)

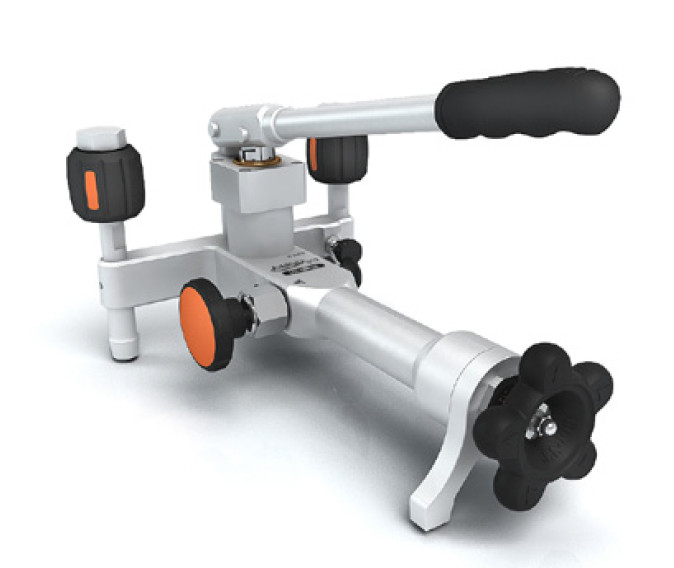

The 918 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 1,500psi (100bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 918 is an ideal comparison test pump for pressure instruments calibration.

Features

Portable

Only 5.7 lb

High Resolution

0.001psi (10 Pa , 0.1 mbar)

High-quality screw press for fine pressure adjustment

Great Stability

A specially designed shut-off valve makes the

pressure as stable as possible during calibration.

Durable and Minimal Maintenance

Built-in gas-liquid isolator protects the pump from

moisture and dirt.

Easy-to-use

Pressurize to desired pressure by the pump lever

directly, and then make fine adjustment. No highpressure

valve needed.

Hand-tight Quick Connectors

Allows easy connecting and disconnecting to the test

pump without the need for PTFE tape or wrenches.

Technical Specifications

Media: Air.
Generated Pressure Range
95% vacuum to 1,500 psi (100 bar) positive pressure
Adjustment Resolution: 0.001 psi (10 Pa , 0.1 mbar).
Material: Ram/adapters: SST
Body: SST/aluminum
Seals: Buna-N, FTM
Connection: Hand-tight connectors for both test gauge
and reference gauge.
Test Gauge Connection: 1/4NPT female, 1/2NPT
female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection: 1/4NPT female ,
1/2NPT female, 1/4BSP female, or M20X1.5 female
Dimensions:
Height: 5.5'' (140 mm)
Base: 12.4" (315 mm) x 7.8" (198 mm)
Weight: 5.7 lb (2.6 kg).
Warranty: 1 year
