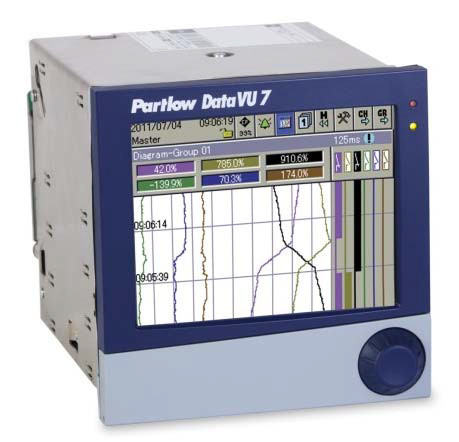

Partlow West DataVU 7 Recorder & Data Acquisition System

     The Partlow West DataVU 7 paperless recorder represents a new generation of paperless recorders that stand out through their modular design for the acquisition of

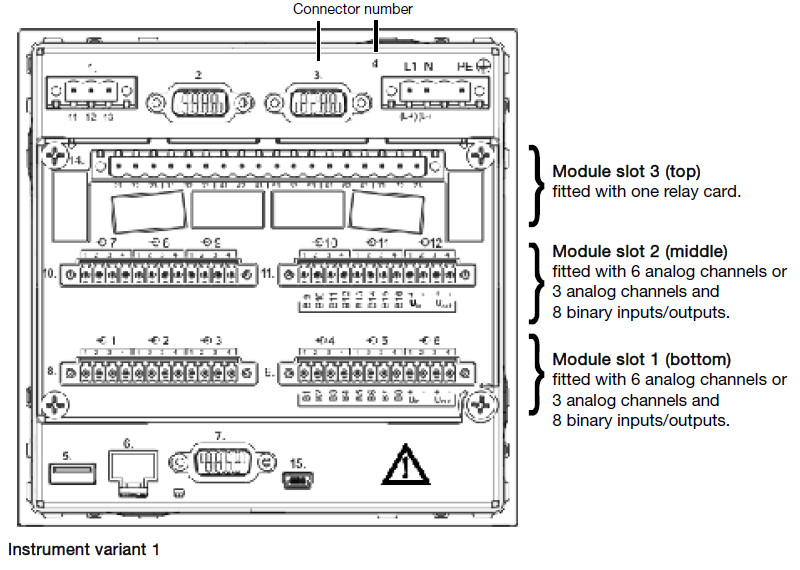

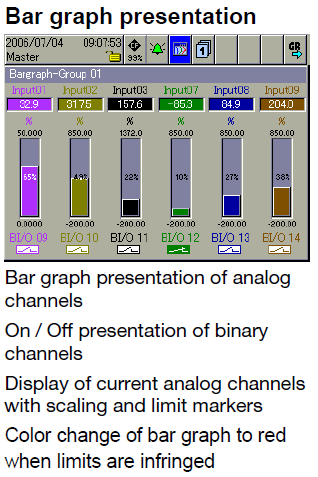

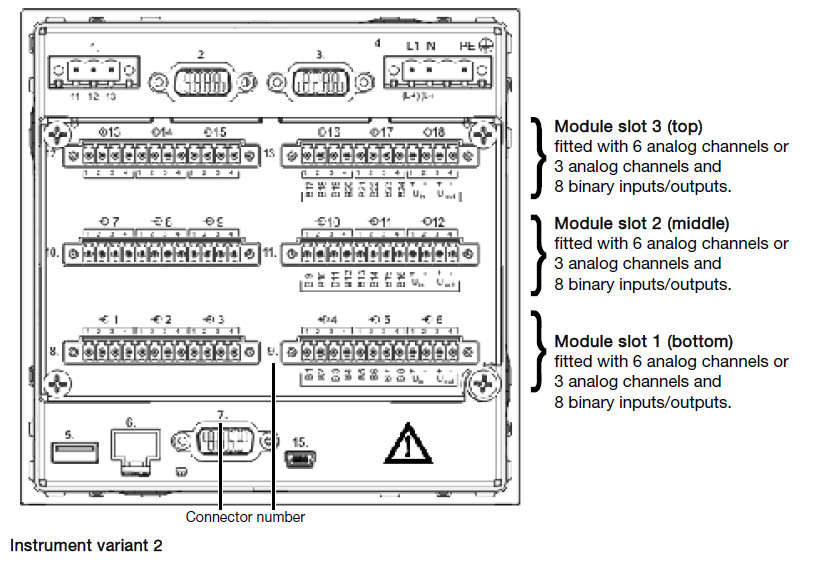

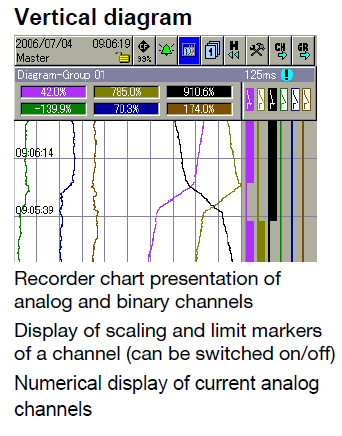

measured data (3 to 18 internal inputs can be utilized), the innovative operating concept and high standards of security prevents unauthorized access and manipulation of the stored data. Within the DataVU7, data can be visualized in process images as measurement curves, as a bar graph or in alphanumerical form.

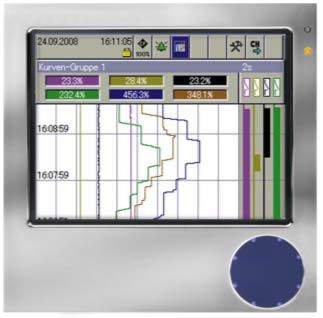

• Easy operation by control knob or touchpad (stainless steel version)
• Measurement data storage on CompactFlash memory card or USB memory stick
• Automatic read-out of data through the Communications Software
• Interface to SCADA systems, to PLC controls and PC systems
• Integrated web server
• Simultaneous recording for up to 3 batch reports
• Batch control (start, stop, texts) through barcode reader
• Modbus master function

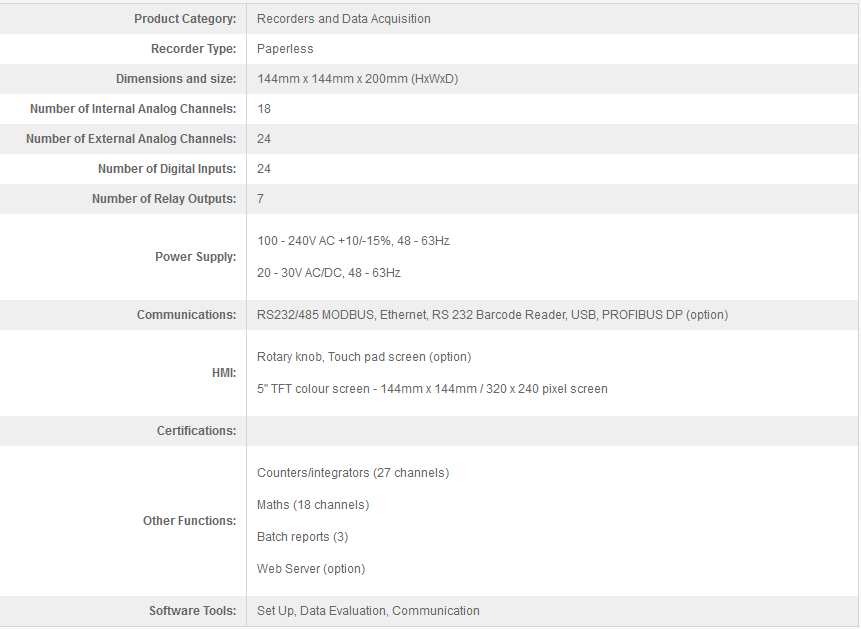

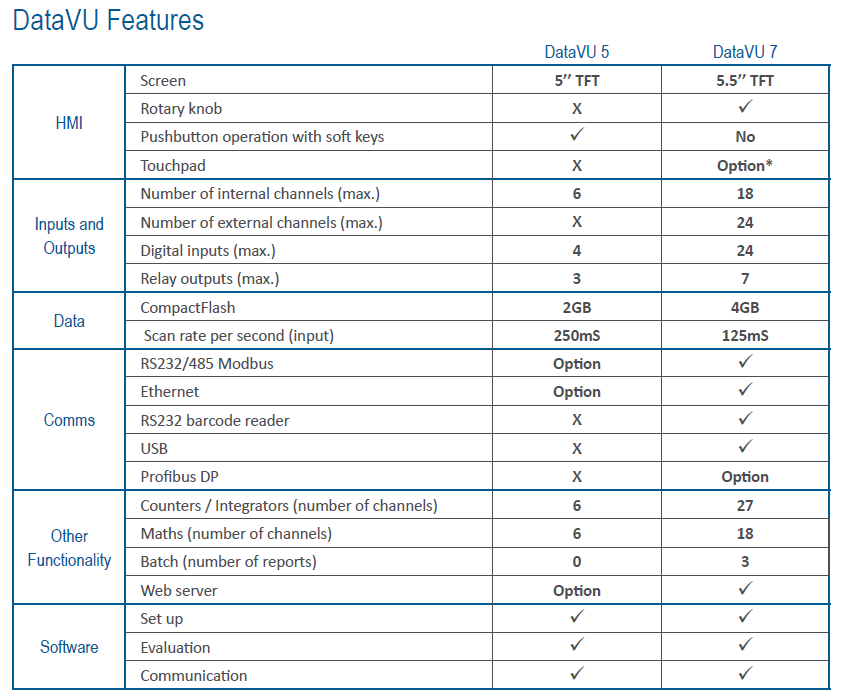

Specification:
