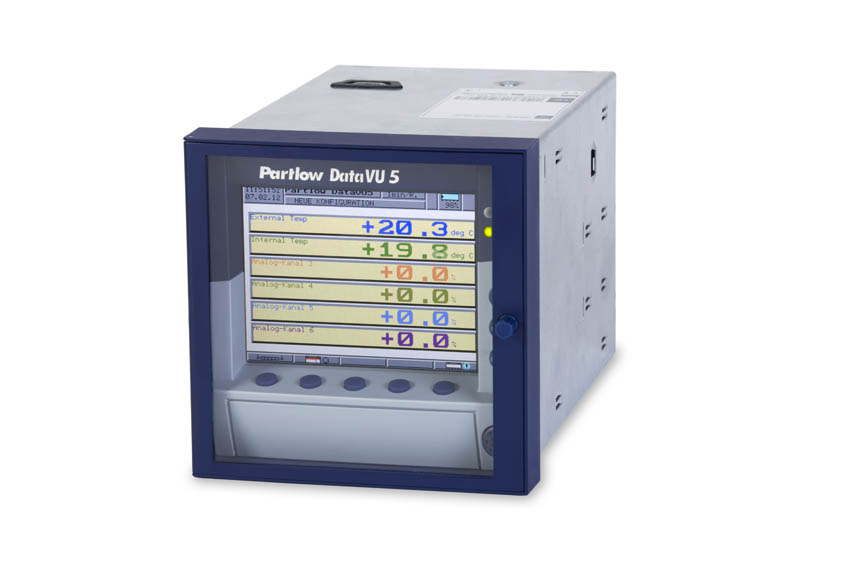

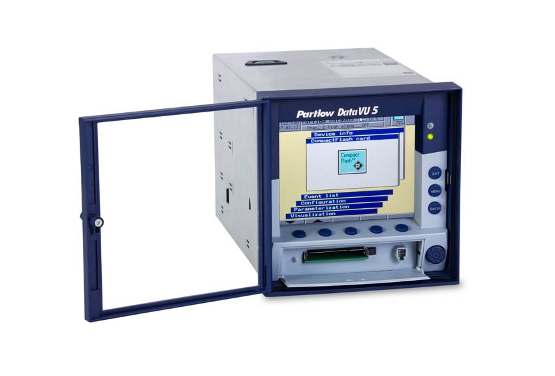

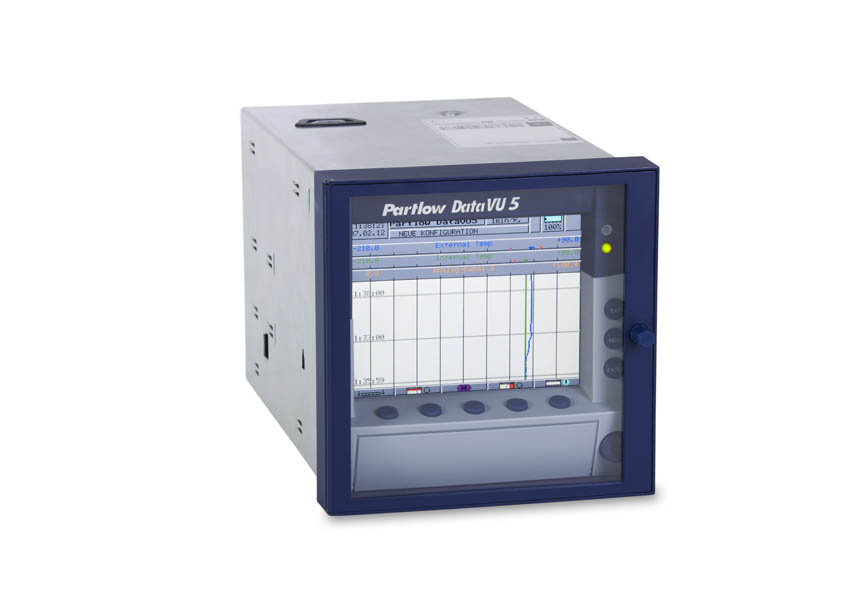

Partlow West DataVU 5 Recorder & Data Acquisition System

     The Partlow West DataVU 5 paperless recorder is designed to provide a quick and easy set up through a user friendly interface. Set up is very simple and can be completed on the spot via the front panel without the need for a PC. Configuration is carried out using a combination of fixed keys and menu led soft keys. Three fixed keys allow the user to easily locate and return to the main top level control options. Alternatively for those that prefer to use a PC to configure the recorder or for multiple recorder configurations, the DataVU 5 can be set up remotely using a Compact Flash card or via an the communications port. This is a big time saver when the same configuration needs to be set up on multiple recorders.

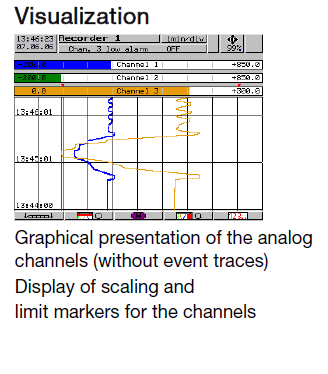

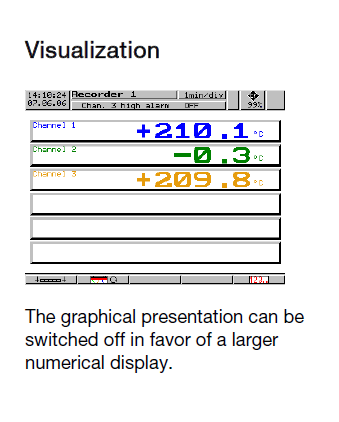

• Recorded data can be displayed numerically as vertical charts (with scaling), numerical display, or as a bar graph

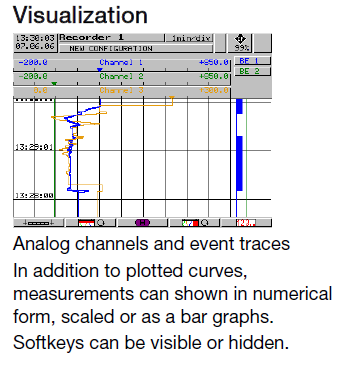

• Presentation of event traces such as “Binary inputs”
• Recorded data is available in the FLASH memory
• Data retained even after a power interruption or prolonged outages

• Compact Flash card data storage

• Recorder configuration through the front panel keys or with optional configuration software (Compact Flash card or interface)
• Evaluate of archived data with PC optional evaluation software

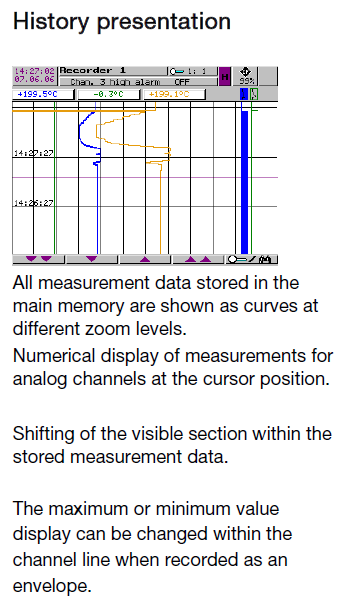

• Search function for review of historic data
• Adapt memory storage cycles to the specific process, using normal, time-of-day and event operation
• Universal configurable analog inputs
• Internal sampling rate of 250 msec for 3 or 6 analog inputs, minimum storage cycle 1 sec
• Counters and integrators (6 channels)
• Math and logic module (6 channels)
• Integrated web server

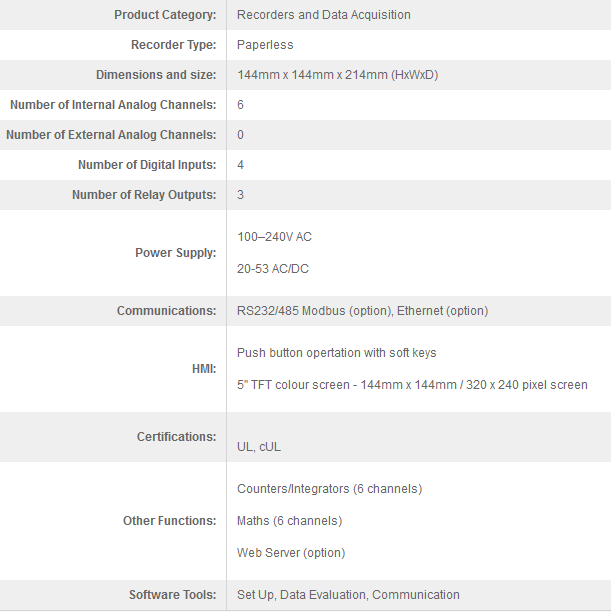

Specification:
