Martel Electronics MC-1010 Multifunction Process Calibrator
|
Item Number: MC-1010
Manufacturer: Martel Electronics
Part Number: 1919999
Product Options
Martel MC-1010 Calibration Options
* Whole number only
|
|

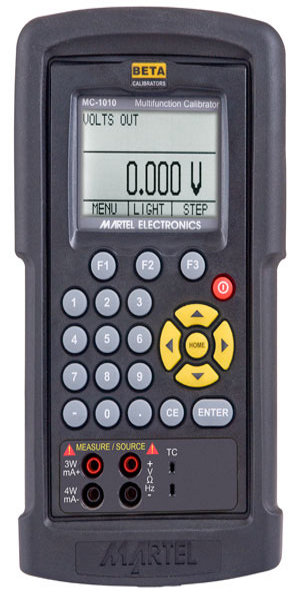

Martel Electronics MC-1010 Multifunction Process Calibrator
The Martel MC-1010 process calibrator provides high accuracy and functionality. The MC-1010 calibration instrument will calibrate virtually any process device including: read and source thermocouples, RTDs, Ohms, Voltage, Current, Frequency, Pressure (with optional modules), and test continuity. By adding a connector or adapter to the process calibrator makes it compatible with 29 different Fluke® 700 Series and Beta Calibrator pressure modules. The process calibrator features a simple user interface, large display, and an RS232 serial interface.
The Martel MC-1010 Calibrator Features
- Simple, straight forward, Intuitive user interface
- Easy to learn yet powerful 3 Key Martel Menu System
- New ClearBrite™ Graphic Display
- New streamlined case design
- ±0.4°C thermocouple/±0.3°C RTD accuracy
- ±0.015% of reading electrical accuracy
- Thirteen (13)Thermocouple and Thirteen (13) RTD types, plus YSI 400 Thermistor
- Separate Read and source modes
- Full Function 4 to 20 mA read, source, simulate and read/power modes with ±0.015% of reading accuracy
- Source or read 0 to 20 volts (±0.015% of reading accuracy)
- Direct keyboard entry enables quick output changes
- Store up to nine (9) set points for each output function
- RTD function compatible with all pulsed transmitters
- RS232 serial interface
- Supplied in full rubber boot; optional carrying case available
- Includes Factory Certificate with calibration data
- Compatible with Fluke 700 Series and Betaport-P Pressure Modules

Pressure Measurement Capabilities - Martel Electronics offers 27 standard pressure modules, covering gauge, vacuum, absolute, compound, and differential measurements. All modules are directly compatible with the Beta-Gauge II.With the Model BPPA-100 Pressure Module Adapter, all modules (with the exceptionof the DC measurement model) are fully compatible with the Martel MC-1210 and MC-1010 Multi-Function Calibrators, the BetaGauge 330, 321A, 311A and 301 Pressure Calibrators, the DMC-1410 Documenting Multi-Function Calibrator, and the Martel Electronics M2001 and 3001 Laboratory/Bench Standards. Pressure ranges may be displayed in any of 13 user selectable units.Water density correction factors of 4 °C, 20 °C, or 60 °F can be selected for either water column unit. The choice of pressure unit may be restricted by limitations on resolution of the instrument display of the particular calibrator the module is used with. For optimum mechanical strength, external pressure connection is made by a 1/8” FNPT 316SS connector welded to a stainless steel metal plate.  |
Our Price: Starting at $68.00
The Seahorse Hurricane Series SE-520 hard case is IP6 certified, watertight, airtight, dustproof, and available in a variety of colors with or without pick and pluck foam.
|
Thermocouple Wire Test Lead Cable Kit, includes Type J, K, T, E thermocouple cable with male mini connector on one end.
|
Thermocouple Wire Test Lead Cable Kit, Includes Type R/S, N, B cable with male mini connector on one end.
|
By using the Beta-Martel Model BPPA-100 BETA Port Pressure Adapter, beta pressure modules are fully compatible with the Martel DMC-1410, MC-1210, MC-1010, M3001, Betagauge 330, Betagauge 311A/321A, Betagauge 301, M2001
|
The Martel Beta Port-P Pressure Module allows pressure calibration and measurement functionality to be added the most Martel Process, pressure and bench-top calibrators. Ranges from 10" Water to 10,000 PSIG are available.
| |
