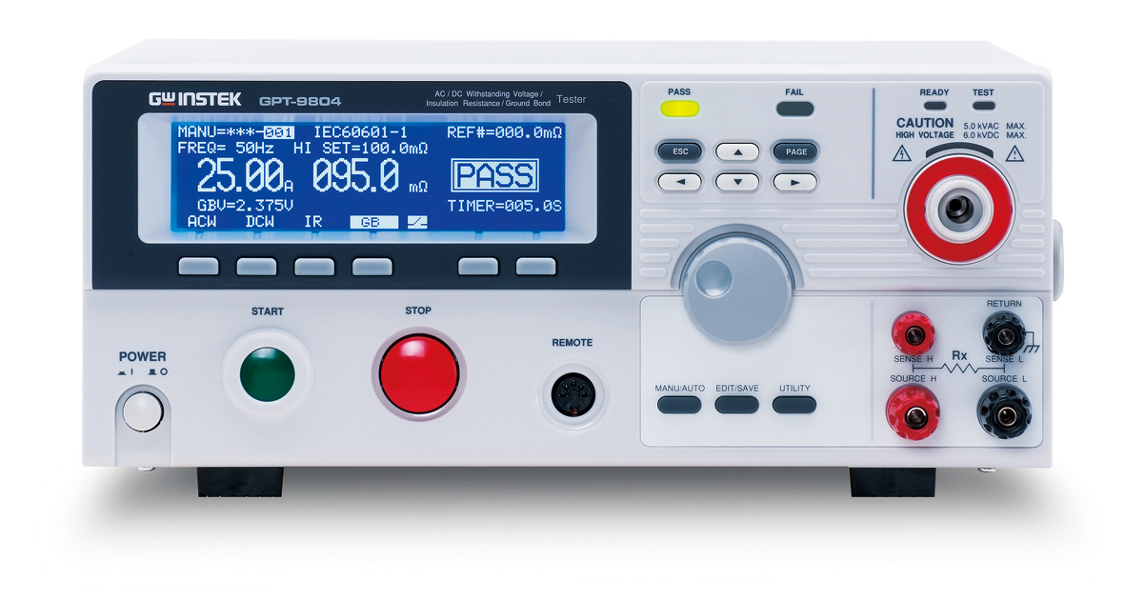

GW Instek GPT-9804 AC/DC Hipot Tester and Safety Analyzer

GW Instek GPT-9804 AC/DC Hipot Tester and Safety Analyzer

     The GPT-9800 Series look to meet a variety of safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety-related requirements for the safety tests of electronic products and components. The GPT-9804 is a 4-in-1 model capable of performing AC withstanding, DC withstanding, insulation resistance and ground bond tests.





Features

• 200VA AC Test Capacity
• 240x64 Ice Blue Dot matrix LCD

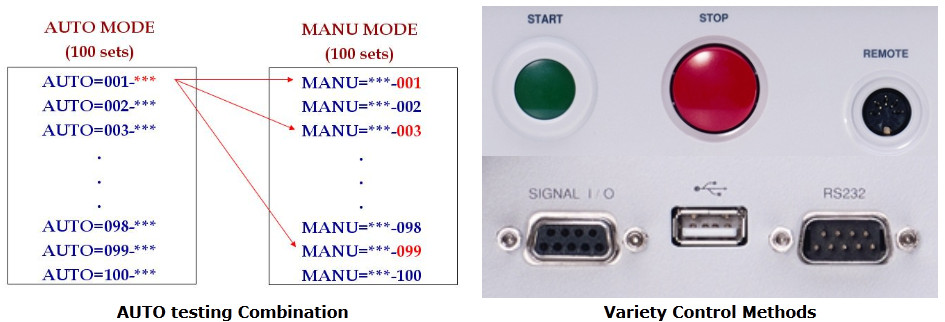

• Manual/Auto Mode
• Function Key for quick selecting
• High intensity flash for Caution & Status indication

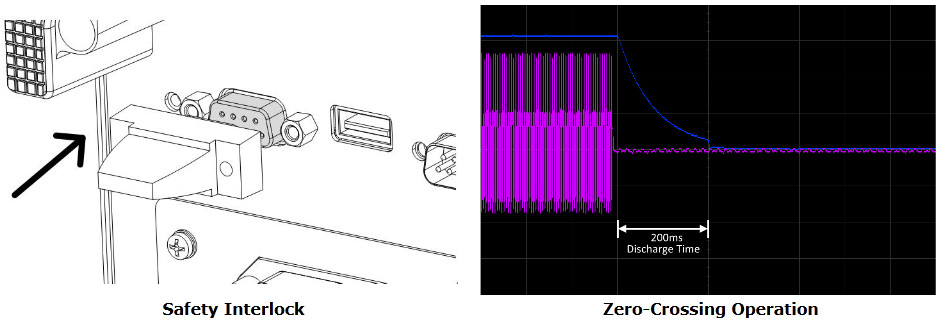

• Safety INTERLOCK function

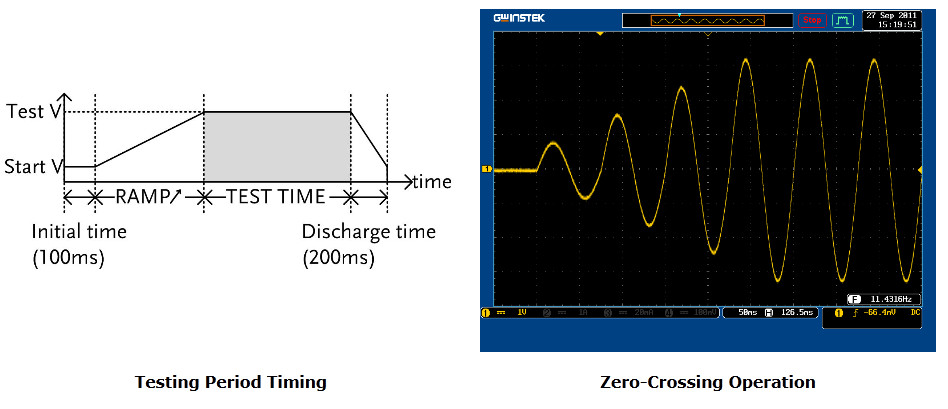

• Zero Crossing Turn-on Operation
• Controllable Ramp-up Time
• True RMS Current Measurement
• High resolution: 1uA for measuring current, 2V for setting voltage
• PWM amplifier to enhance the power efficiency and reliable testing
• Max. 100 memory block for test condition (step) setting. And each step can be named individually.
• Remote terminal on the front panel for “start” and “stop” control
• Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

• Safety Testing of Electrical Product in Manufacturing

   Power Cord

   Home Appliances

   Information Technology Equipment

   Medical Equipment

• Quality Assurance Verification
• Safety Standard Compliance

   Pre-qualification in R&D

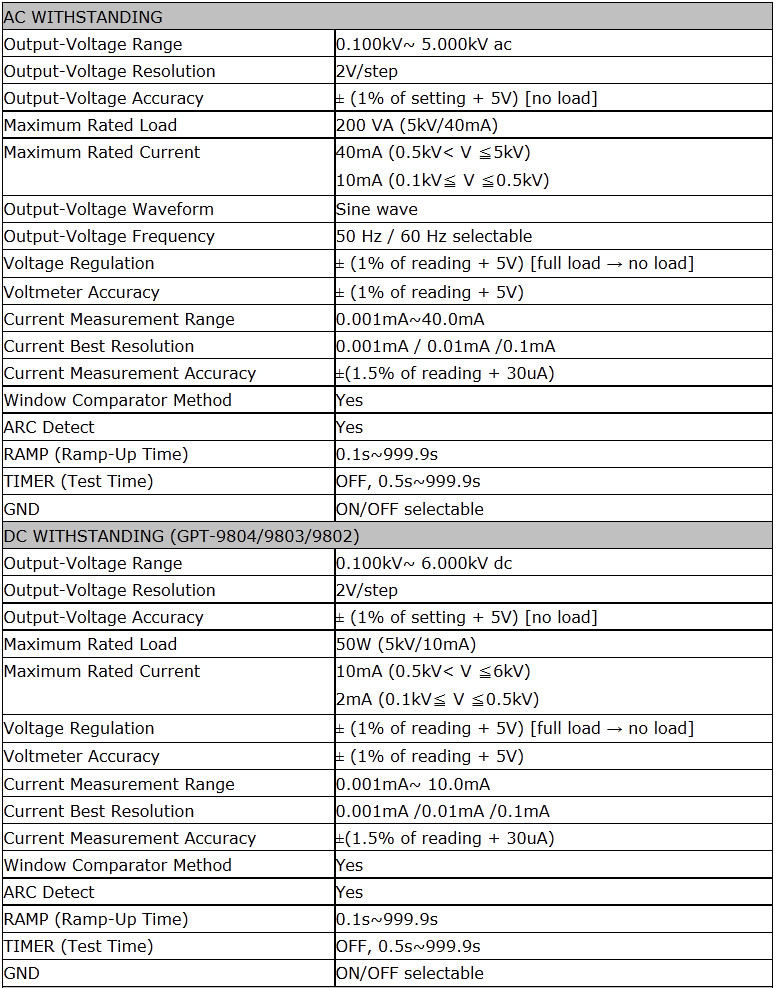

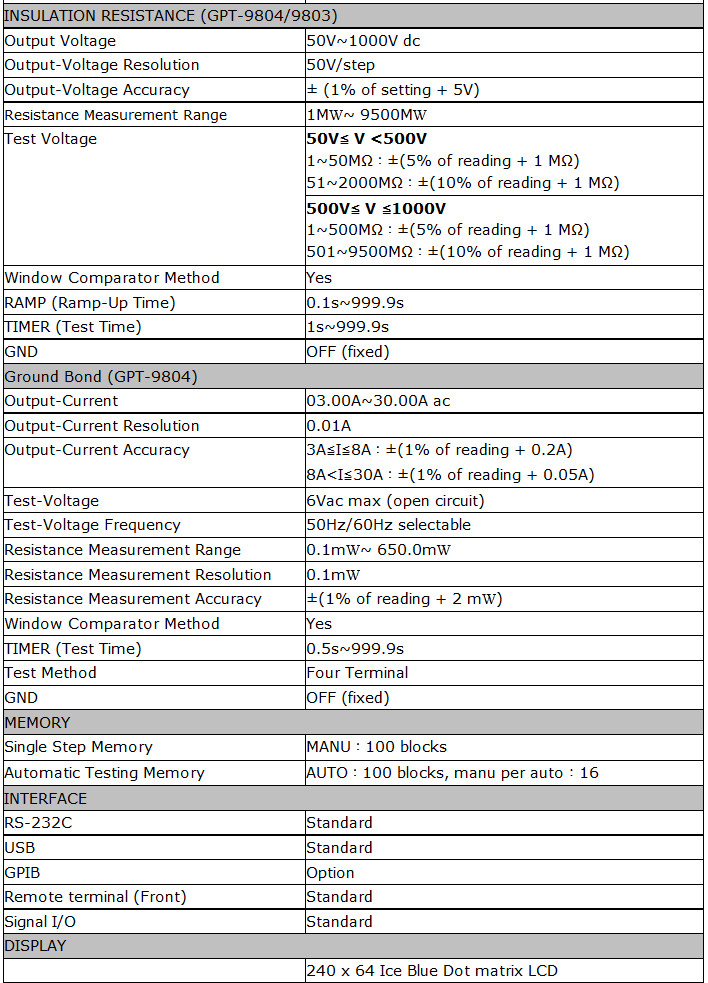

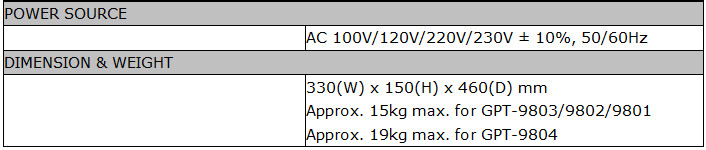

Technical Specification

GW GPT-9804 Data Sheet
