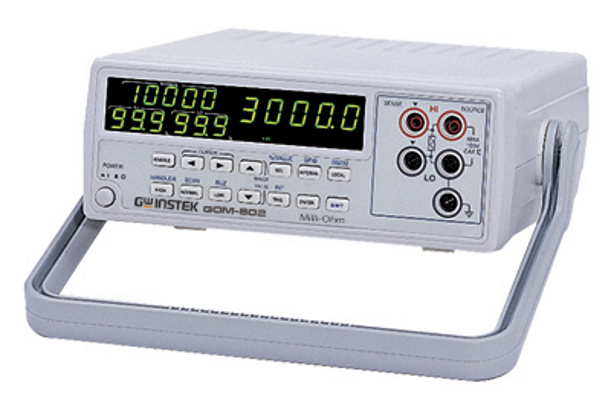

GW Instek GOM-802 High Precision Low Resistance D.C. Milli-ohm Meter
The GOM-802 Milli-ohm meter is designed for component and material resistance measurements in laboratories and other test environments. A large display with 30,000 counts and a superb accuracy of up to 0.05% gives the reliability and flexibility required in demanding measurement applications. Features such as Auto ranging, a built-in comparator offering Hi-Lo testing, a Limit Percent setting, and Go/NoGo testing reduce the effort for complex testing setups. Displayed selections of Relative, Actual, and % Value show results viewed from multiple perspectives. The GOM-802 supports 4 Wire Kelvin resistance measurements for faster accurate results. For an accurate, sophisticated, affordable Milli-ohm meter, the GOM-802 is the right choice.
Features
- 30000 Counts Display
- High Accuracy 0.05%
- Hi/Lo Comparator and Limit Percent Setting
- Measurement of REL, Actual and % Value
- Continuous or Triggered Measurement Mode
- Temperature Compensation and Measurement
- Four-Terminal Measurement Technique
- Auto-Recall Last Setting After Power OFF and ON Again
- Alarm Setting for PASS/FAIL
- Scan, Handler Interface(Standard)
- Manual or Auto-ranging
- RS-232C+GPIB (Option)
Technical Specification
|
The GW Instek GTL-108A Kelvin Low Resistance Test Lead set can be used with any instruments that accepts standard banana straight plugs. The GTL-108A provide a 4 wire measurement for resistance.
| |
