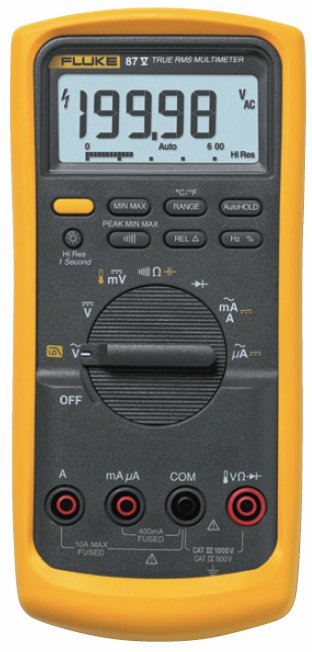

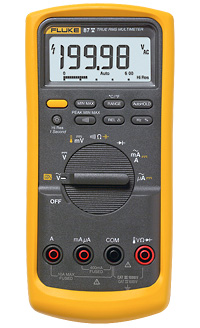

Fluke 87V True RMS Digital Multimeter

Fluke 87-5 TRMS Multimeter






      The Fluke 87V features accuracy and diagnostic functions for maximum industrial productivity.  The new Fluke 87V has improved measurement capabilities, troubleshooting features, resolution and accuracy to solve more problems in electronics, plant automation, power distribution, and electro-mechanical equipment.  The 87-5 is the next generation of the ever popular Fluke 80 series DMM, but with more problem solving power, safety, convenience and durability.



Features

• Large LCD display and 2 level bright white backlitght
• Designed to withstands 8,000 volt spikes caused by load switching and faults
• Complies with 2nd edition IEC and ANSI safety standards
• Longer battery life due to improved sleep mode

• Relative mode to cancel test lead resistance for accurate low ohms measurements
• Select auto or manual ranging

• Optional magnetic hanger for easy setup and hand free operation


Measures

• Accurate voltage and frequency measurements on adjustable speed drives
• True RMS ac voltage and current for accurate measurements on non linear systems
• Built in thermometer conveniently allows you to take temperature measurements
• Works with motor drives and other electrically noisy equipment
• Measure up to 1000 Volts AC or DC

• Measure up to 10 A (20 A for 30 seconds); higher with current clamp accessories

• 10,000 micro-F capacitance range
• Frequency to 200 kHz and percent duty cycle
• Peak capture to record transients as fast as 250 micro-seconds

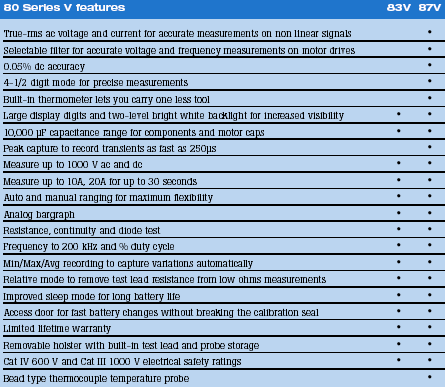

Additional Features

• Selectable filter for accurate voltage and frequency measurements
• 4.5 digit mode for precise measurements
• Built in thermometer lets you carry one less tool
• Large display digits and 2 level bright white backlight
• 10,000 uF capacitance range for components and motor caps
• Peak capture to record transients as fast as 250 uSec
• Measure up to 1000 V ac and dc
• Measure up to 10 A, 20 A for up to 30 seconds
• Auto and manual ranging for maximum flexibility
• Analog bar graph
• Resistance, continuity and diode test
• Frequency to 200 kHz and % duty cycle
• Min/Max and average recording to capture variations automatically
• Relative mode to remove test lead resistance
• Improved sleep mode for long battery life
• Access door for battery  without breaking the calibration seal
• Limited lifetime warranty
• Removable holster with built in test lead and probe storage
• Cat IV 600 V and Cat III 1000 V  electrical safety ratings

Save when you buy the Fluke 87V/E2 Industrial Electrician Combo Kit

The Combo Pak Save Over $50 in useful accessories for your new Fluke 87-5.
The Pak Includes:

• 87V Multimeter
• TL224 silicone test leads
• AC220 long reach alligator clips
• TP238 test probes
• TPAK ToolPak™ Magnetic Meter Hanging Kit
• 80BK temperature probe
• C35 lightweight soft accessory case
• 9V battery (installed)
• Getting Started Manual
• CD with detailed manual

Add the Fluke TPAK Meter Hanging Kit

     Now you can hang you meter almost anywhere with the new Fluke TPAK ToolPak accessories kit. ToolPak includes a universal hanger, a magnet, a 17-inch (23 cm)  "hook-and-loop" hanger strap. The universal hanger is designed to fit into the special module on the back of the meter.  The universal hanger allows you to hang your meter on a nail, hook or other object.  You can add a piece of rope, flexible wire or cable to hang the meter in almost any position. The 17-inch (23 cm) hook-and-loop strap is used with Fluke's universal hanger to wrap around and connect to a pipe, beam or any other convenient support structure. And finally, the strong magnet accessory will attach to an electrical panel, a metal doorjamb or any other ferrous-type metal.

Each Fluke 87V Meter includes

• 9V battery
• Test Leads
• Rubber Holster with Stand
• Manual




What is "Limited Lifetime Warranty"?

Each Fluke 20, 70, 80, 170 and 180 series DMM will be free from defects
in material and workmanship for its lifetime. As used herein, "lifetime" is
defined as seven years after Fluke discontinues manufacturing the product,
but the warranty period shall be at least ten years from date of purchase.

In what way is the warranty limited?

• It does not cover battery or fuses.
• It does not cover abuse or usage outside of specifications.
• It does not cover normal wear and tear of mechanical parts.
• It covers the LCD for 10 years only (state-of-the-art for LCDs).
• It covers original user purchaser only
