Fluke a3000 FC AC Wireless Current Clamp Module
|
Item Number: FLK-A3000FC
Configuration: -FLK-A3000FC
Manufacturer: Fluke
Part Number: FLK-A3000FC
Product Options
* denotes required field
Fluke a3000 FC Calibration Option
* Whole number only
|
|

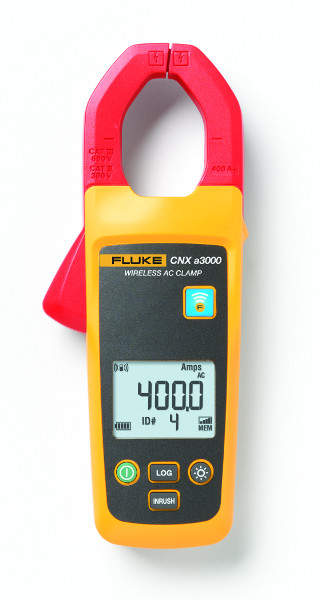

Fluke a3000 FC AC Wireless Current Clamp Module
The a3000 AC Wireless Current Clamp Module is part of the Fluke team of wireless troubleshooting tools. Connect the a3000 AC Wireless Current Clamp Module to your test point, and view the results up to 20 meters away on the 3000 Wireless Multimeter. You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems. Or use as a stand-alone measurement tool or combine with other 3000 modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the a3000 current module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. The wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.
Features
The a3000 FC AC Current Clamp Kit provides measurement of all common electrical parameters.
The 3000 FC Wireless Multimeter offers:
- True-RMS AC and DC voltage measurements to 1000V
- True-RMS AC and DC current with 0.01 mA resolution
- Continuity, resistance, diode test, capacitance and frequency measurements
- MIN/MAX Recording
- CAT III 1000 V; CAT IV 600 V; IP54
The a3000 FC AC Wireless Current Clamp Module provides:
- True-RMS AC current measurements to 400 A
- 2% accuracy to 100 Hz, 2-1/2% accuracy to 500 Hz
- Memory recording up to 65,000 readings
- Backlit LCD display
- CAT III 600 V; IP42
Using the optional PC adapter, the wireless troubleshooting system can track up to 10 measurement modules simultaneously, with results sent to a PC for further analysis.

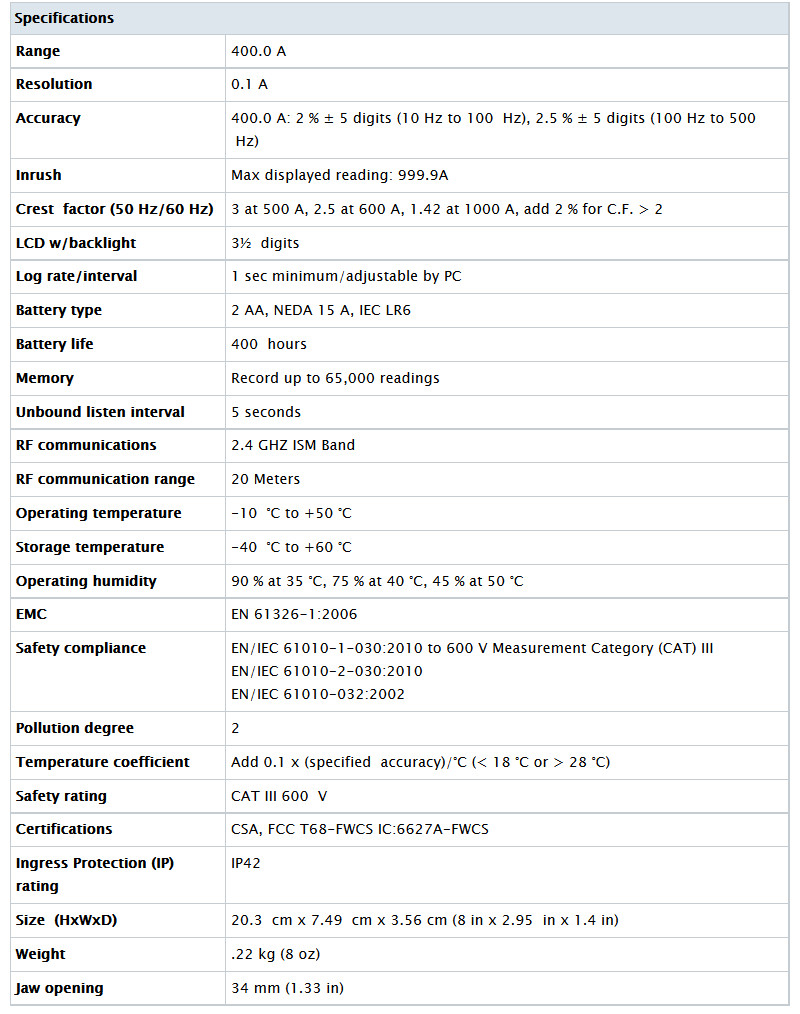

Technical Specifications
 Accessories
Fluke a3000 FC AC Wireless Current Clamp Module

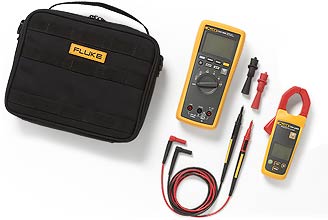

Fluke a3000 FC Kit:Fluke a3000 FC AC Current Clamp Kit
|
The Fluke TPAK meter hanging kit allows you to hang your Fluke meter on any hook, nail, bolt or magnetic surface. Working hands-free could not be easier with the Fluke TPAK or ToolPak.
|
Fluke pc3000 FC help you understand the information you measure. No more writing down data as the pc3000 PC Adapter and Software wirelessly collects up to 65,000 sets of time stamped min/max/avg readings from the remote modules.
|
Fluke t3000 FC K-Type Wireless Temperature Module is part of the Fluke team of wireless troubleshooting tools.
|
Fluke v3000 FC Wireless Voltage Module is part of the Fluke team of wireless troubleshooting tools. Connect the v3000 AC Wireless Voltage Module to your test point, and view the results up to 20 meters away on the 3000 Wireless Multimeter.
|
Fluke a3001 FC iFlex™ Wireless Current Module allows you to measure around awkward sized conductors and makes wire access easier.
|
Fluke 3000 Wireless Multimeter is the captain of the Fluke wireless team. With the 3000 Wireless Multimeter, you see live measurements from multiple modules simultaneously and remotely on a single screen.
|
Fluke 3000 FC HVAC System is part of the Fluke team of wireless troubleshooting tools. Connect the a3000 AC Wireless Current Clamp Module to your test point, and view the results up to 20 meters away on the CNX Wireless Multimeter.
|
Fluke 3000 General Maintenance System is part of the team of Fluke wireless troubleshooting tools. Connect the a3001 iFlex AC Wireless Current Module to your test point, and view the results up to 20 meters away on the 3000 Wireless Multimeter.
|
Fluke 3000 Industrial System connects the three a3001 iFlex AC Wireless Current Modules to your test points, and view the results from all three phases up to 20 meters away on the Wireless Multimeter.
| |
