Ametek JOFRA MGC-HIGH
|
Item Number: MGC-HIGH
Configuration: -SYSTEM1
Manufacturer: Ametek (JOFRA)
Part Number: MGC-HIGH
Product Options
* denotes required field
Ametek JOFRA MGC-HIGH Base Model Number Option*
Ametek JOFRA MGC-HIGH Calibration Option*
* Whole number only
|
|
Ametek JOFRA MGC-HIGH
Features

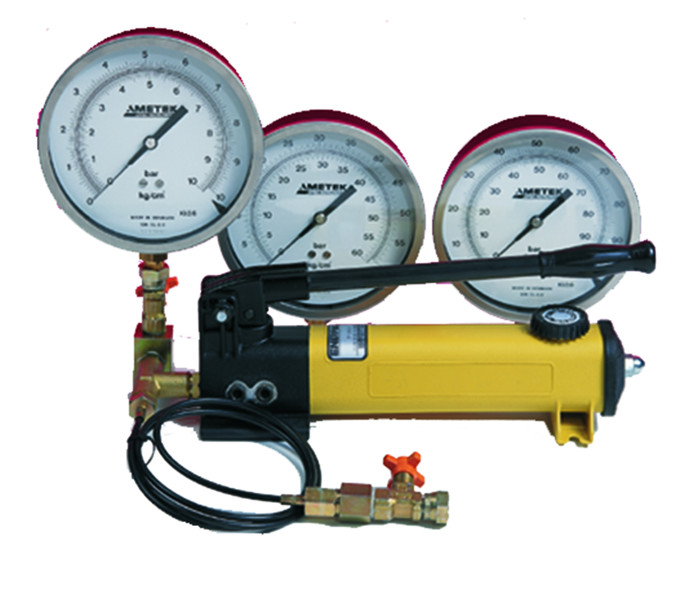

The MGC-HIGH consists of 3 or 4 dual-scaled precision pressure gauges with ±0.6% F.S. accuracy and a hydraulic jack pump fitted with hose, valve and couplings: delivered in a handy carrying case. The pressure gauges are all dual-scaled in bar & kg/cm2 and of a quality matching marine requirements. The gauges are easy to read and the hydraulic pump rapidly produces the required testing pressure. The gauges provide the user with a clear indication of pressure for comparison to the system instrument. The operator can then identify the extent of any error; it is possible to compensate for or note the error and thereby only replace faulty pressure indicators.

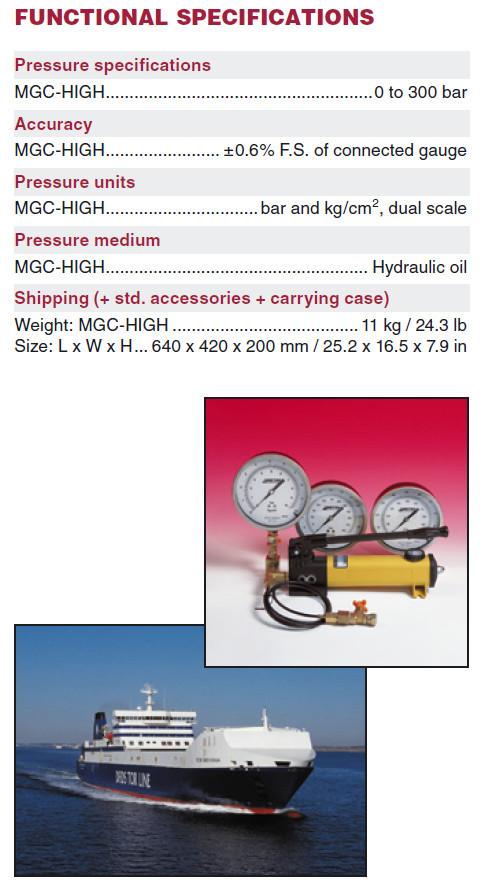

Technical Specification
|
Ametek MGC-LOW consists of 2 or 3 dual-scaled precision pressure gauges with ±1% F.S. accuracy and a hydraulic handpump fitted with hose, valve and couplings: delivered in a handy carrying case.
| |
