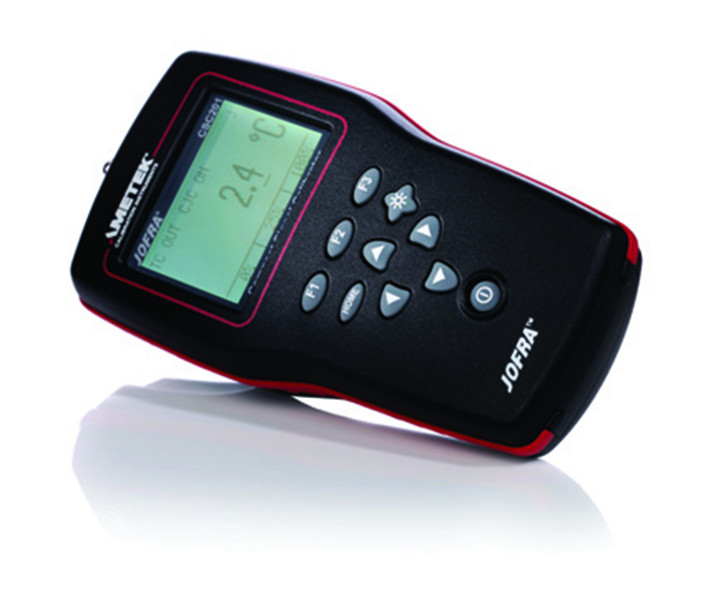

Ametek JOFRA CSC201 - Compact Signal Calibrator

Ametek JOFRA CSC201 - Compact Signal Calibrator

         The rugged, high-accuracy CSC201 calibrator is a convenient tool for process engineers and ideal for both field calibration and workshop use. We have designed the CSC201 to meet the high-accuracy demands of modern sensors and transmitters. A large number of predefined sensors types are available. The instrument can calibrate 16 types of RTDs and 13 types of thermocouples, providing ohms, mV and custom RTD curves. The versatile CSC201 works with pulsed excitation transmitters and programmable logic controllers and, when combined with a JOFRA APM external pressure module or a JOFRA calibration pump, will measure and calibrate pressure as well.

• Temperature signal calibrator
• High accuracy

• Thermocouple and RTD calibrator in the same unit
• Advanced step and ramp functions
• Fast RTD simulation
• Calibrate pressure
• Optimal display

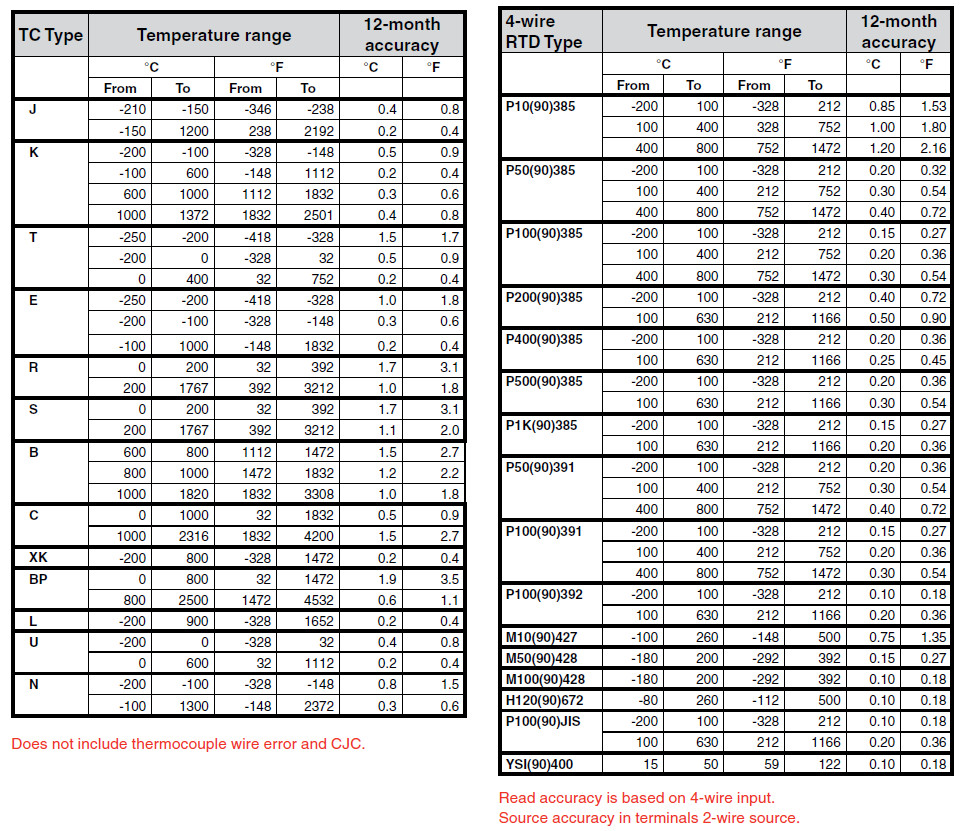

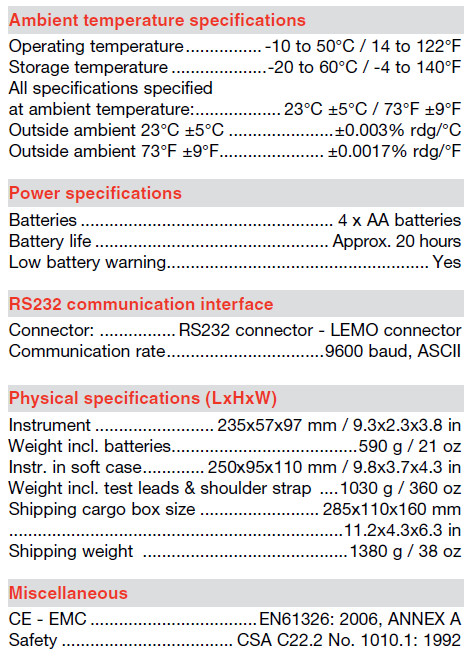

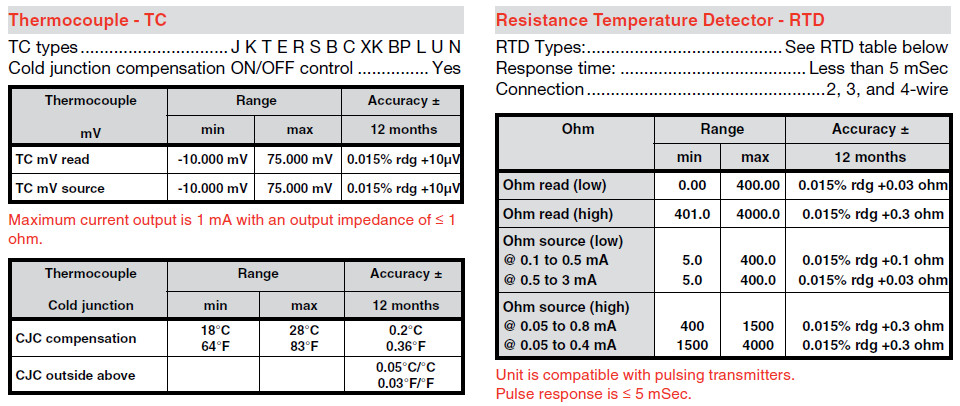

Technical Specifications

Ametek CSC201 Data Sheet
