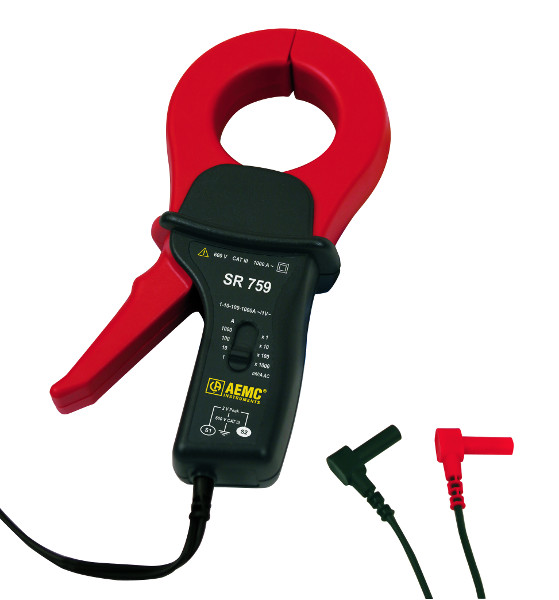

AEMC Model SR759 AC Current Probe (Lead - mV output: 1mA-1A, 10mA-10A, 0.1A-100A, 1A-1000A max)

Our Price: $299.00 Item Number: 2116.33 Manufacturer: AEMC (Chauvin Arnoux) Part Number: 2116.33 Product Options AEMC SR759 Calibration Option Calibration not included Standard Calibration (+ $65.00) ISO 17025 Calibration (1000 Amps Max) (+ $110.00) Quantity: * Whole number only Email this page to a friend

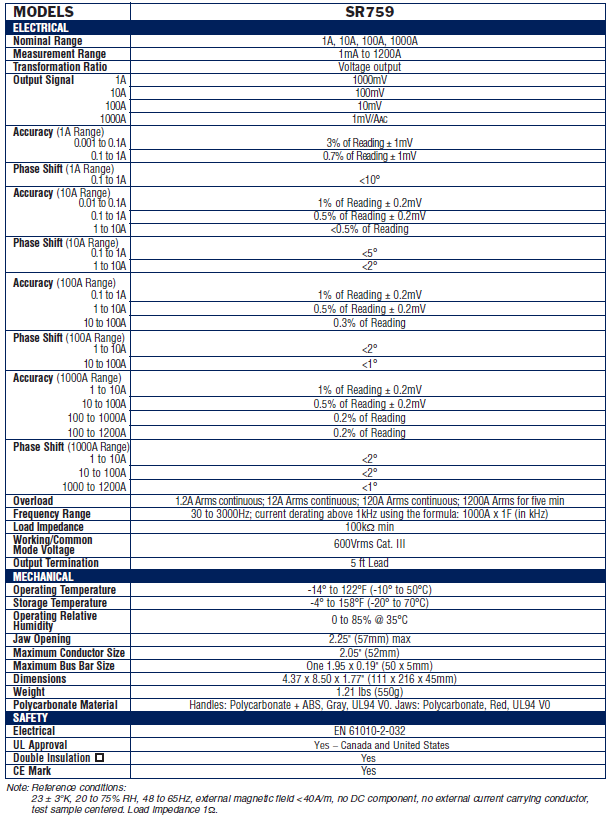

AEMC Model SR759 AC Current Probe  (Lead - mV output: 1mA-1A, 10mA-10A, 0.1A-100A, 1A-1000A max) The SR759 probe is a range selectable probe that offers four switch selectable ranges: 1, 10, 100 or 1000A. This probe has a voltage output proportional to the current measured in the jaw of the probe. The SR759 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs compatible with DMMs and other instruments. The high accuracy, high sensitivity and low phase shift makes this probe an excellent choice for use in a wide range of power quality applications, including very low or leakage current measurements. AEMC Model SR759 AC Current Probe Features Measurement range of 1mA to 1200AAC Large jaw opening accommodates conductors up to two 500kcmil Improved ergonomic design and easy operation High content nickel metal core Conforms to EN 61010, 600V CAT III Low phase shift for power measurement Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters AEMC Model SR759 AC Current Probe Applications Power quality measuring Large industrial loads Measuring around cable bundles Power load monitoring Waveform analysis AEMC Model SR759 AC Current Probe Specifications
