AEMC Model SR752 AC Current Probe (1000A, 1mV/A, Lead)
|
Item Number: 2116.32
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.32
Product Options
AEMC SR752 Calibration Option
* Whole number only
|
|

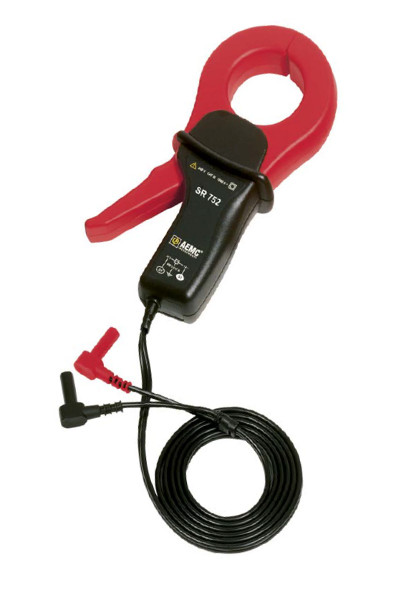

AEMC Model SR752 AC Current Probe (1000A, 1mV/A, Lead)
SR752 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have voltage inputs.
It has a voltage output proportional at the rate of 1mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs. |
AEMC Model SR752 AC Current Probe Features
- Measurement range of 1mA to 1200AAC
- Large jaw opening accommodates conductors up to two 500kcmil
- Improved ergonomic design and easy operation
- High content nickel metal core
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
AEMC Model SR752 AC Current Probe Applications
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
|
