AEMC Model SR704 AC Current Probe (1000A, 1mA/A, Lead)
|
Item Number: 2116.30
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.30
Product Options
AEMC SR704 Calibration Option
* Whole number only
|
|
AEMC Model SR704 AC Current Probe (1000A, 1mA/A, Lead)

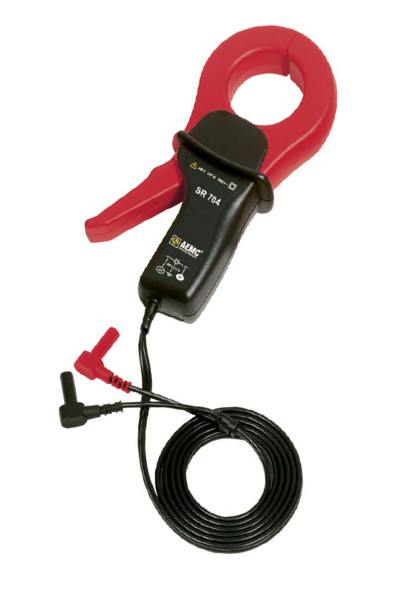

SR704 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input.
It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR704 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.
AEMC Model SR704 AC Current Probe Features
- Measurement range of 1mA to 1200AAC
- Large jaw opening accommodates conductors up to two 500kcmil
- Improved ergonomic design and easy operation
- High content nickel metal core
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
AEMC Model SR704 AC Current Probe Applications
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
|
