AEMC Model SR701 AC Current Probe (1000A, 1mA/A, Jack)
|
Item Number: 2116.29
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.29
Product Options
AEMC SR701 Calibration Option
* Whole number only
|
|
AEMC Model SR701 AC Current Probe (1000A, 1mA/A, Jack)
The SR701 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input.
It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR701 has jack output terminations that accept 4mm banana plugs.
The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.
AEMC Model SR701 AC Current Probe Features
- Measurement range of 1mA to 1200AAC
- Large jaw opening accommodates conductors up to two 500kcmil
- Improved ergonomic design and easy operation
- High content nickel metal core
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
AEMC Model SR701 AC Current Probe Applications
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis

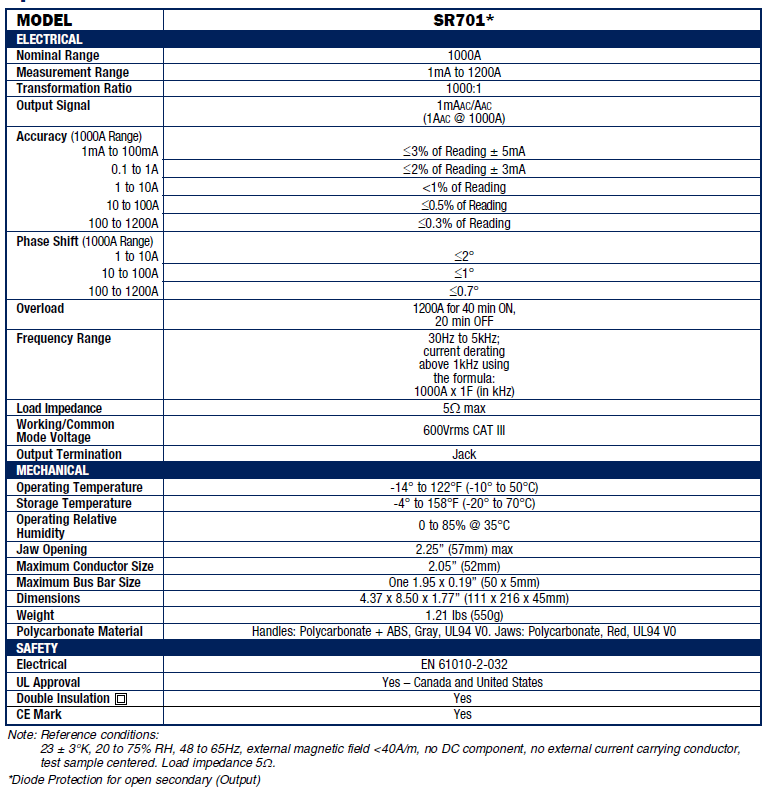

AEMC Model SR701 AC Current Probe Specifications
|
