AEMC Model MN352 AC Current Probe (150A, 10mV/A, Jack)
|
Item Number: 2116.26
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.26
Product Options
AEMC MN352 Calibration Option
* Whole number only
|
|
AEMC Model MN352 AC Current Probe (150A, 10mV/A, Jack)
MN352 is a high accuracy and low phase shift AC current probe with voltage output. It is designed for use with DMMs or current measuring instruments with voltage inputs.
The voltage output is proportional to the current measured (through the jaws). The MN352 has a jack output that accepts 4mm banana plugs.
AEMC Model MN352 AC Current Probe Features
- Small, compact size
- Large jaw opening accommodated conductors up to 250kcmil
- Designed for DMMs, loggers, recorders and oscilloscopes
- Conforms to EN 61010, 600V CAT III
AEMC Model MN352 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- 5A secondary current transformers (CTs) monitoring

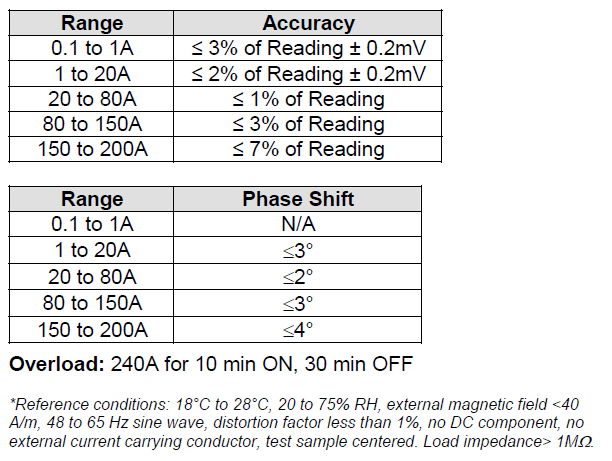

AEMC Model MN352 AC Current Probe Specifications
|
