AEMC Model MN312 AC Current Probe (150A, 1mA/A, Jack)
MN312 is a high accuracy and lower phase shift AC current probe. It has a 1000:1 ratio and an output of 1mA per A in the primary (inside the jaws).
The MN312 has a jack output that accepts 4mm banana plugs. The MN312 has a protective diode across the output that limits the voltage in the case of an open secondary.
AEMC Model MN312 AC Current Probe Features
- Small, compact size
- Large jaw opening accommodated conductors up to 250kcmil
- Designed for DMMs, loggers, recorders and oscilloscopes
- Conforms to EN 61010, 600V CAT III
AEMC Model MN312 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- 5A secondary current transformers (CTs) monitoring

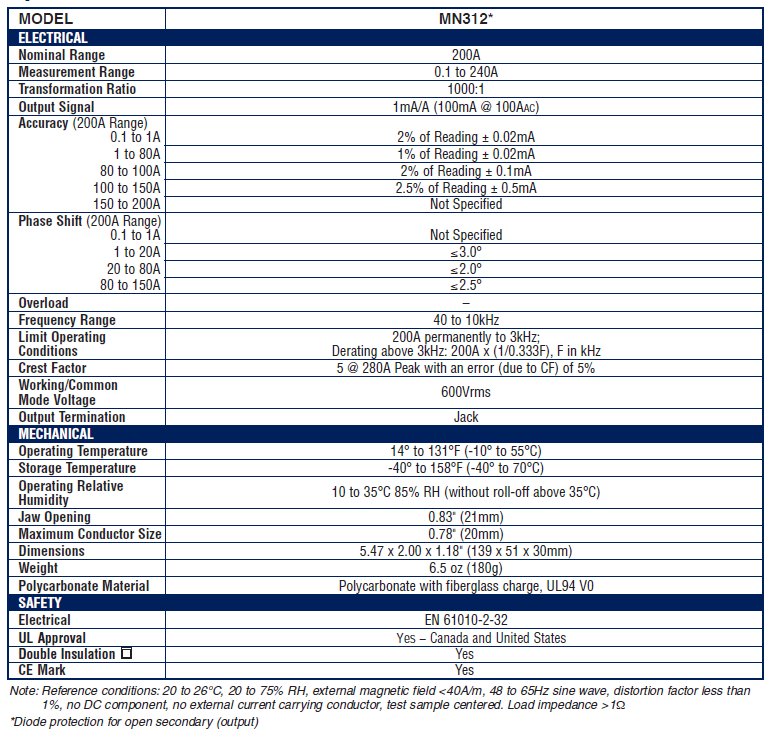

AEMC Model MN312 AC Current Probe Specifications
|
