AEMC Model MN307 AC Current Probe (12A, 100mV/A AC, Lead)
|
Item Number: 2116.23
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.23
Product Options
AEMC MN307 Calibration Option
* Whole number only
|
|
AEMC Model MN307 AC Current Probe (12A, 100mV/A AC, Lead)
MN307 is designed for low AC current measurements up to 10A, such as secondary of CTs or even small motors and appliances.
It offers a higher voltage output of 100mV per Amp (1VAC @ 10AAC) for enhanced sensitivity at lower levels, while offering a high crest factor at full range.
The MN307 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
AEMC Model MN307 AC Current Probe Features
- Small, compact size
- Large jaw opening accommodated conductors up to 250kcmil
- Designed for DMMs, loggers, recorders and oscilloscopes
- Conforms to EN 61010, 600V CAT III
AEMC Model MN307 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- 5A secondary current transformers (CTs) monitoring

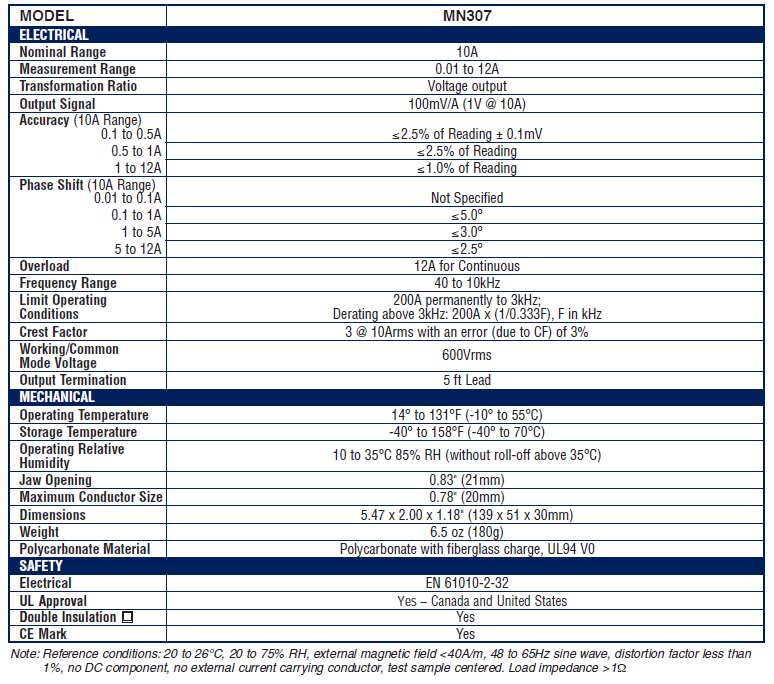

AEMC Model MN307 AC Current Probe Specifications
|
