AEMC Model MN05 AC Current Probe (100A-1mV/A, 10A-1V/A, Lead)
|
Item Number: 2129.19
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2129.19
Product Options
AEMC MN05 Calibration Option
* Whole number only
|
|
AEMC Model MN05 AC Current Probe (100A-1mV/A, 10A-1V/A, Lead)
MN05 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
With its two ranges, it offers excellent resolution for measuring AC intensities from 5mA to 100A.
AEMC Model MN05 AC Current Probe Features
- Small, compact size
- Measurement range of 5mA to 10AAC; 1 to 150AAC
- Jaw opening accommodates conductors up to 0.39" diameter
- Designed for DMMs, loggers, recorders and oscilloscopes
- 40Hz to 10kHz response
- 100AAC, 1mVAC/AAC, 10AAC, 1mVAC/mAAC,
- Designed to EN 61010, 600V CAT III safety standard
AEMC Model MN05 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- Data logging/recording

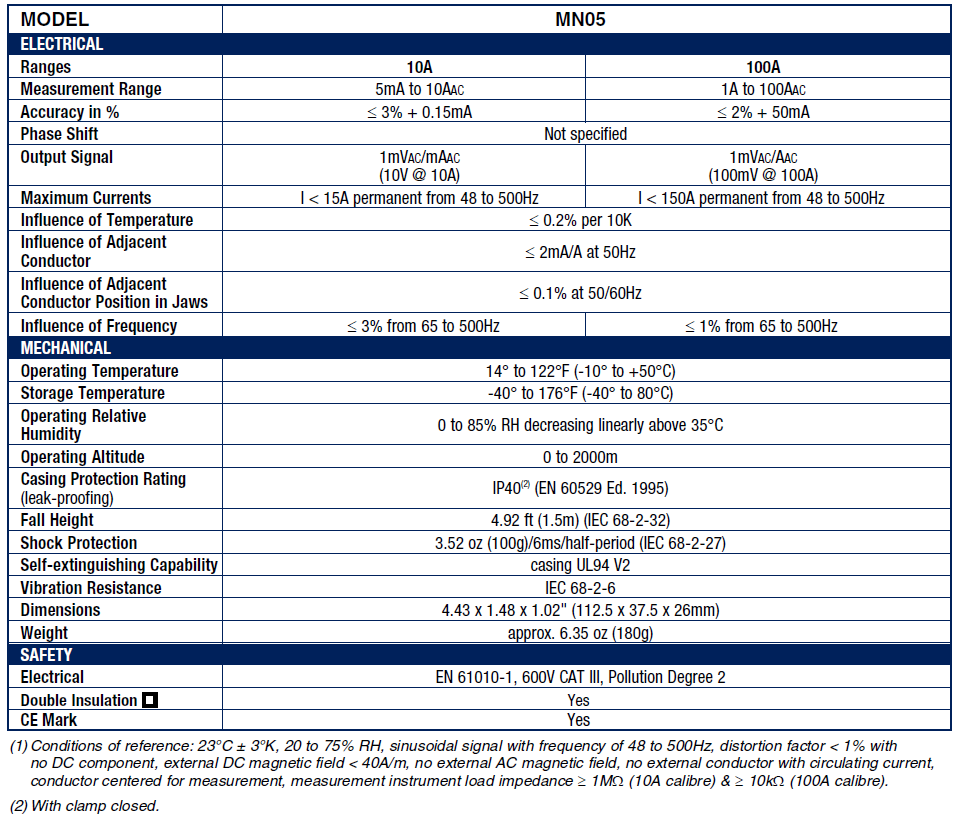

AEMC Model MN05 AC Current Probe Specifications
|
