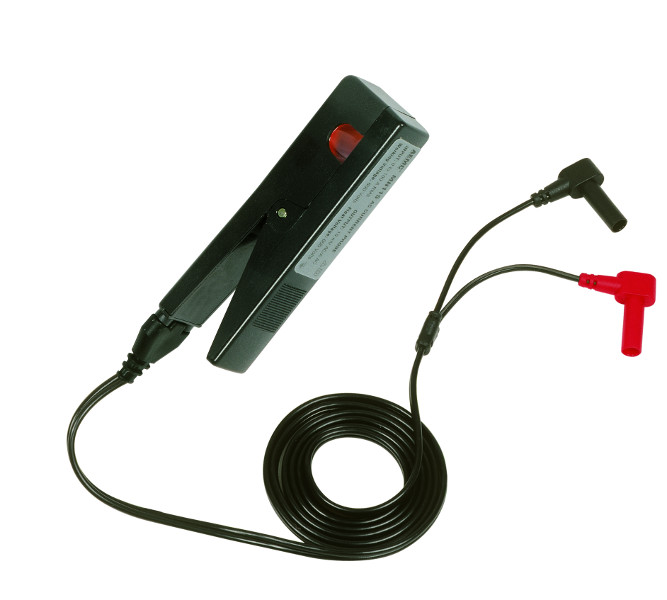

AEMC Model MN02 AC Current Probe (100A, 1mA/A, Lead, 1% Accuracy)
|
Item Number: 2129.20
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2129.20
Product Options
AEMC MN02 Calibration Option
* Whole number only
|
|
AEMC Model MN02 AC Current Probe (100A, 1mA/A, Lead, 1% Accuracy)
MN02 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.
When used with an AC Ammeter, it allows you to directly read the current measured when the probe is clamped around one
of the carrying conductors.
AEMC Model MN02 AC Current Probe Features
- Small, compact size
- Measurement range from 0.5 to 100AAC
- Jaw opening accommodates conductors up to 0.39" diameter
- Designed for DMMs, recorders with mA input
- 1mAAC/AAC output signals
- 48Hz to 10kHz response
- Designed to EN 61010, 600V CAT III safety standard
AEMC Model MN02 AC Current Probe Applications
- Measuring in breaker panels
- Industrial loads
- HVAC
- Residential and commercial sites
- Data logging/recording

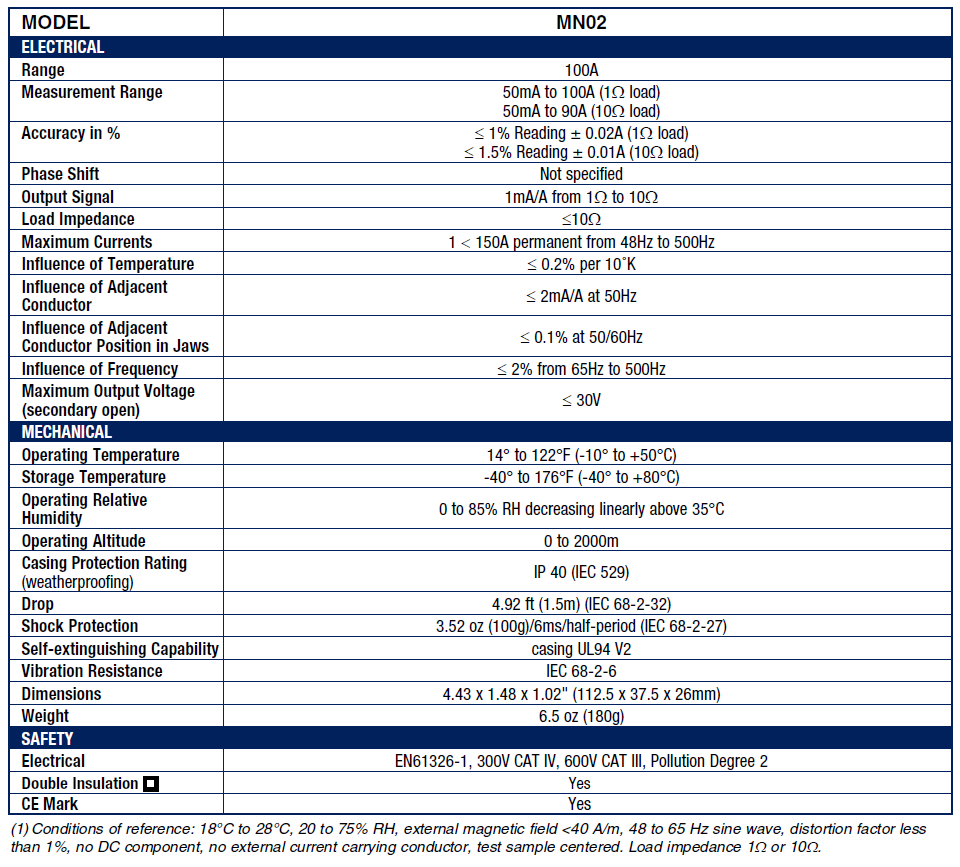

AEMC Model MN02 AC Current Probe Specifications  |
