AEMC MTX 1054B-PC Oscilloscopes

Our Price: $2,375.00

Item Number: 2150.12

Manufacturer: AEMC (Chauvin Arnoux)

Part Number: 2150.12

Quantity:

Email this page to a friend

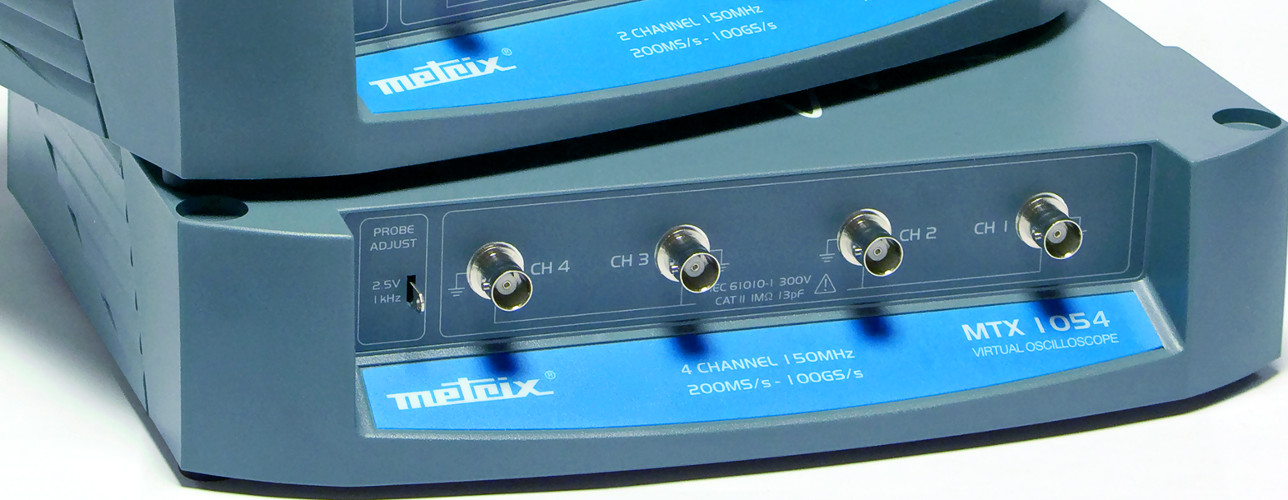

AEMC MTX 1054B-PC Oscilloscopes

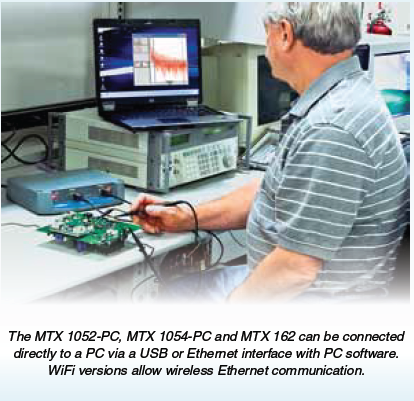

The MTX 1054B-PC oscilloscopes are compact, lightweight and stackable. These instruments can be connected directly to a PC via USB or Ethernet. Web server software is also included.

Features

Directly connect to your PC via USB or Ethernet
Includes Web server software
4 channels/150MHz bandwidth
Sampling rate 200MS/s in one shot mode and 100GS/s in ETS Mode
Detects 10 nanosecond transients
Advanced trigger mode
Smart Persistence Oscilloscope (SPO) Analysis
Vertical sensitivity from 250uV to 100V/div with 10 bit resolution
300V CAT III rated
Stackable, convenient for multiple unit feeds to the PC
Uses all the PC advantages allowing high screen resolution and large storage capacity for more precise data analysis

Applications

Laboratory applications in education
Research and development departments
Electronic design teams

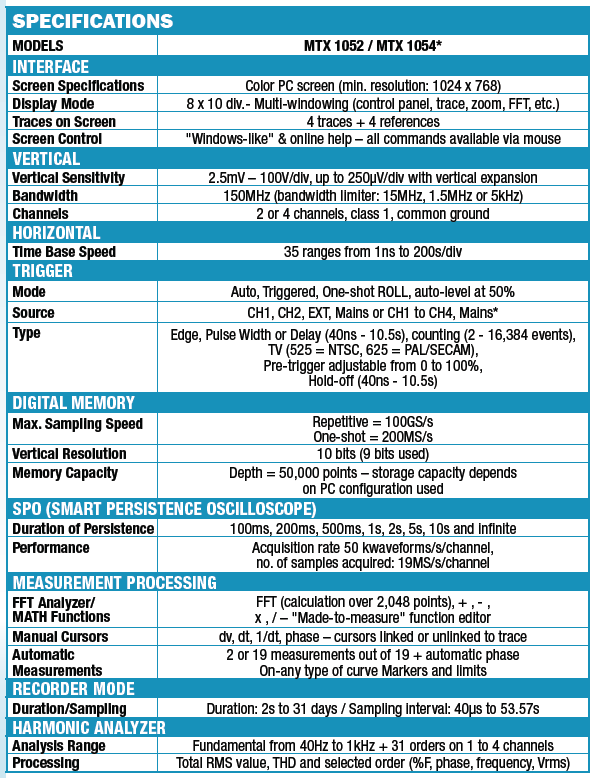

Technical Specifications
