AEMC CA863 Digital Thermometers

AEMC CA863 Digital Thermometers

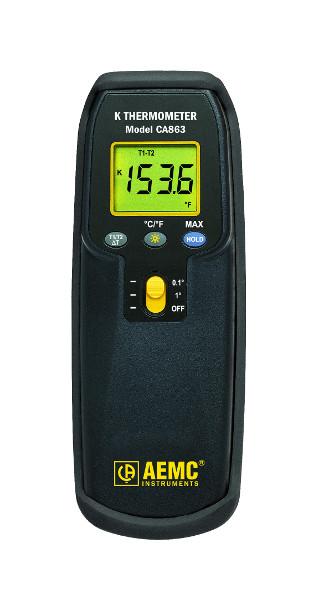

The K Thermometer Model CA863 is a portable, compact meter designed to use external K thermocouples as temperature sensors. The Model CA863 offers dual inputs for performing differential measurements. Features include MAX and HOLD functions, a high resolution 0.1° setting and an easy-to-read 3 1/2 digit backlit LCD. The Model CA863 offers the ability to easily switch between temperature readings on both channels (T1 & T2) and differential (DT).

Features

• Easy one-hand operation
• K thermocouples included
• Measures temperature in °F and °C
• 0.1° Resolution
• MAX and HOLD functions
• 2000-count backlit LCD
• Lightweight and compact
• Includes rugged, shockproof, protective, dirt resistant holster

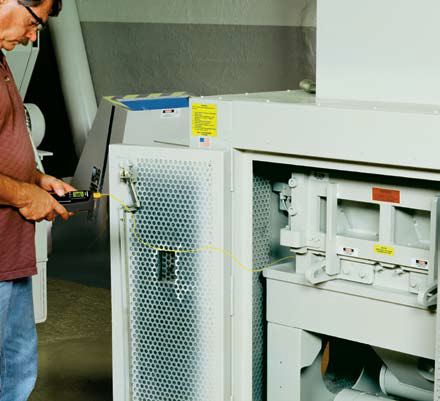

Temperature measurement on industrial oven used in reclaiming defective plastic parts

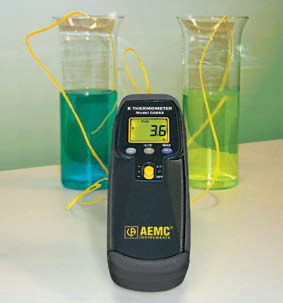

                  Dual K thermocouple inputs
Take two simultaneous temperature measurements and
view each individual reading or the differential with the
push of a button.

Applications

• Process control monitoring and troubleshooting
• HVAC installation and maintenance
• Chemical processing
• Food processing
• Mold injecting and HVAC for temperature rise and fall
• Indoor/outdoor differential temperature measurements

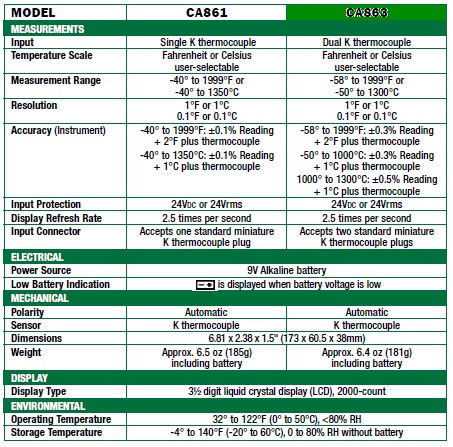

Technical Specification
