Updated Operating Temperature Specification:

-14° to 122°F (-25 to 50°C), 80% RH, non-condensing

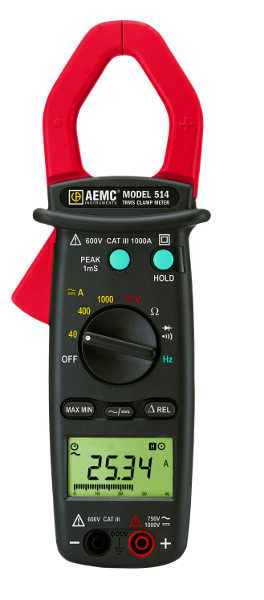

      The Clamp-on Meter Model 514 is a general purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.

      The Model 514 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A. The Model 514 is sized for a comfortable, one-handed operation. This model is True RMS sensing responding to distorted signal electrical systems. The jaw opening for the Model 514 is 1.575" (40mm).

• Standard size, full function clamp-on meter
• 1000AAC/DC current measurements
• 750VAC/1000VDC volt measurements
• TRMS measurements
• Resistance measurement to 4000Ω
• Continuity with beeper below 40Ω
• Frequency measurements from V and A
• Diode test
• 1ms Peak function for fast capture of signals
• Hold function to "freeze" readings
• Push-button for easy ADC zeroing
• Large easy-to-read 4000-count display
• 42-segment analog bargraph
• Includes test leads and soft carrying case


Applications

• Commercial, industrial, residential and HVAC troubleshooting
• Power panel, junction box and battery bank monitoring
• AC or DC motor testing
• Power plant troubleshooting
• Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers

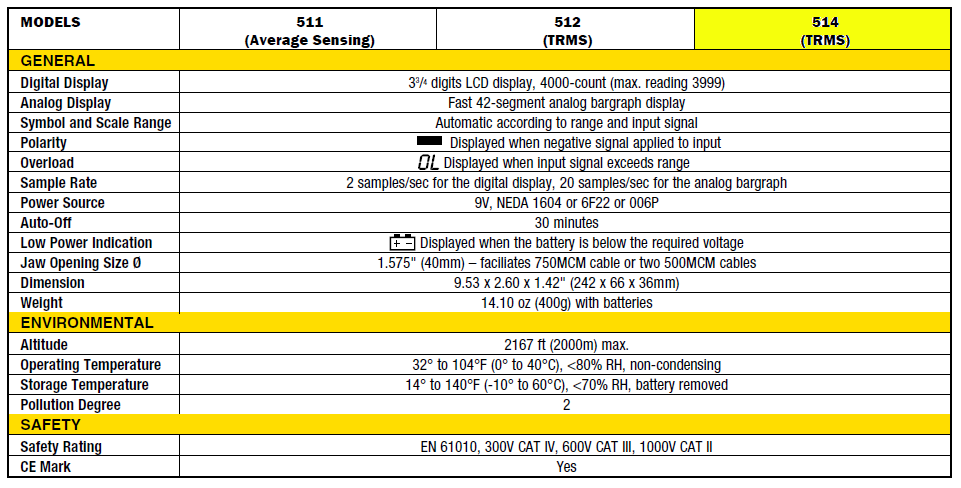

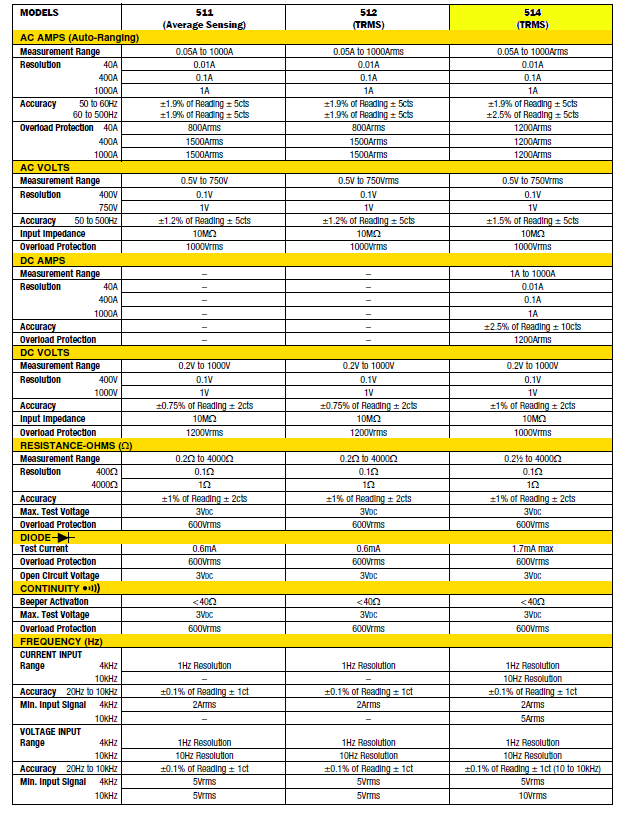

Technical Specification
