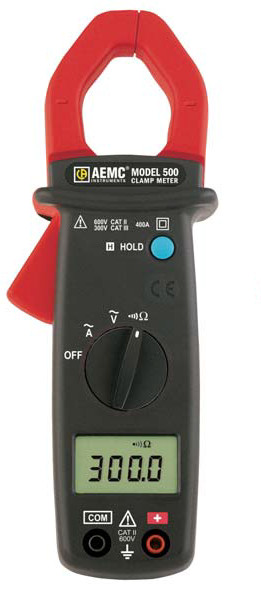

    The Clamp-on Meter Model 500 is a general-purpose professional clamp-on. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 500 is auto-ranging, and provides the user with AC Volts, AC Amperes, resistance, and continuity. The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 500 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening for the Model 500 is 1.1” (28mm).

• Compact size - fits into your pocket
• 400AAC current measurements
• 600VAC volts measurements
• Resistance measurements to 400Ω
• Continuity with beeper below 35Ω
• Hold function to "freeze" readings
• Large easy-to-read 4000-count display
• 42-segment bargraph
• Includes test leads and a soft carrying pouch

Applications

• Electrical testing of distorted currents found on uninterrupted power supplies (UPS), speed controls, static power blocks, chopped power supplies, controllers and motors

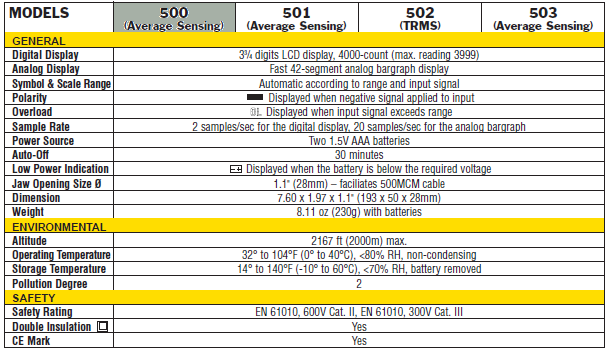

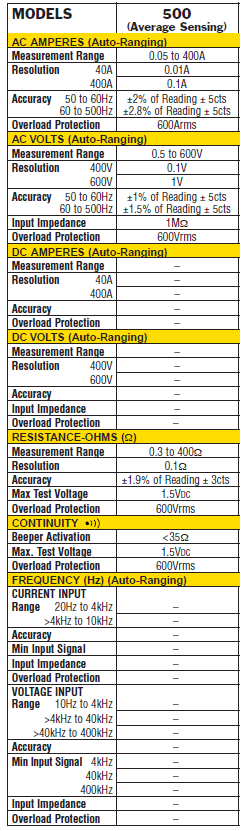

Technical Specification
