AEMC 1035 500V Megohmmeters
|
Item Number: 2116.90
Manufacturer: AEMC (Chauvin Arnoux)
Part Number: 2116.90
* Whole number only
|
|

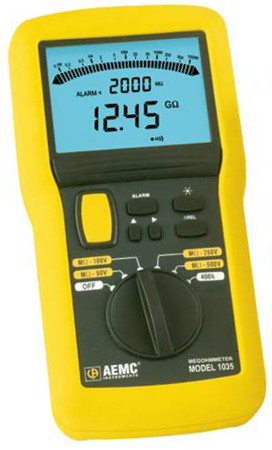

AEMC 1035 500V Megohmmeters
The Megohmmeter Model 1035 is a battery powered digital insulation resistance tester. It is designed to measure insulation resistance, voltage and to measure resistance.
The Model 1035 tests are 50, 100, 250 and 500V. It incorporates a 600V voltmeter which automatically detects and accurately displays AC/DC voltages in the test circuit on each of the insulation test voltage ranges.
Above 25V is also provides and audible and visual signal, and inhibits further tests, thus protecting the user and the meter. An exceptionally large digital/analog multi-function display provides clear and easy readings
enhanced by a bright blue electroluminscent backlight.
Features
- True Megohmmeter®
- Test voltage combinationss of 50V, 100V, 250V and 500V
- Insulation measurements to 20,000MΩ 20GΩ
- Automatic test inhibition if live sample >25V
- Automatic discharge for operator safety
- Alarm indication
- Multi-line 4000-count digital display with analog bargraph
- Over-molded slip-proof holster for rugged field use
- Supplied with a soft carrying case and test leads
Input Connections
.jpg)
Applications
- Motor insulation resistance measurements
- Continuity checks
- Low resistance measurement
- Test industrial commercial wiring & motor control centers
- Test motors (AC & DC)
- Test transformers
- Dielectric Absorption Ratio and Polarization Index measurements

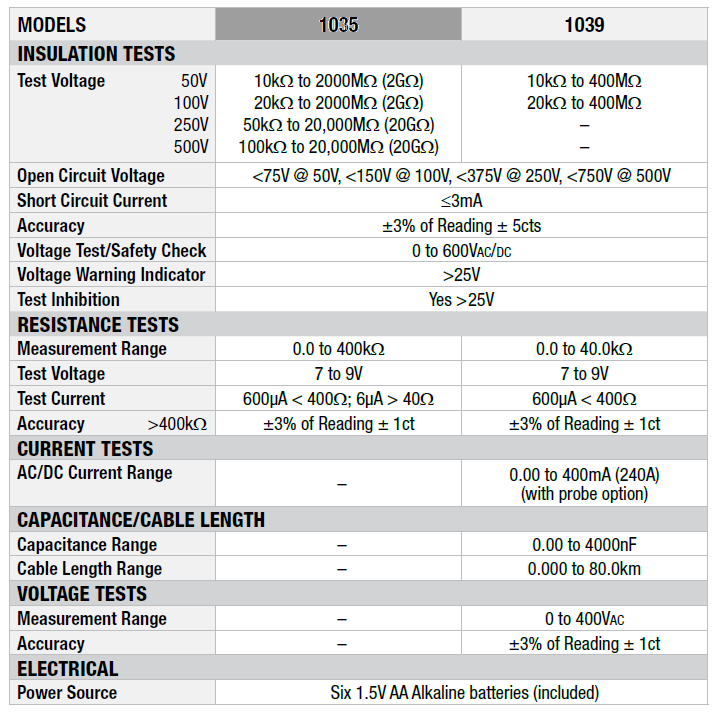

Technical Specification
.jpg)
|
